E-Mangue X BAFANG(Original)

DPC18 3.5" TFT Color Display UART Protocol

Specifications：

Model: DPC18
Protocol: UART
Screen: 3.5" TFT Color Screen
Waterproof: IP65
Voltage: 36V / 43V / 48V
PAS Level: 0-3 /0-5 /0-9 optional

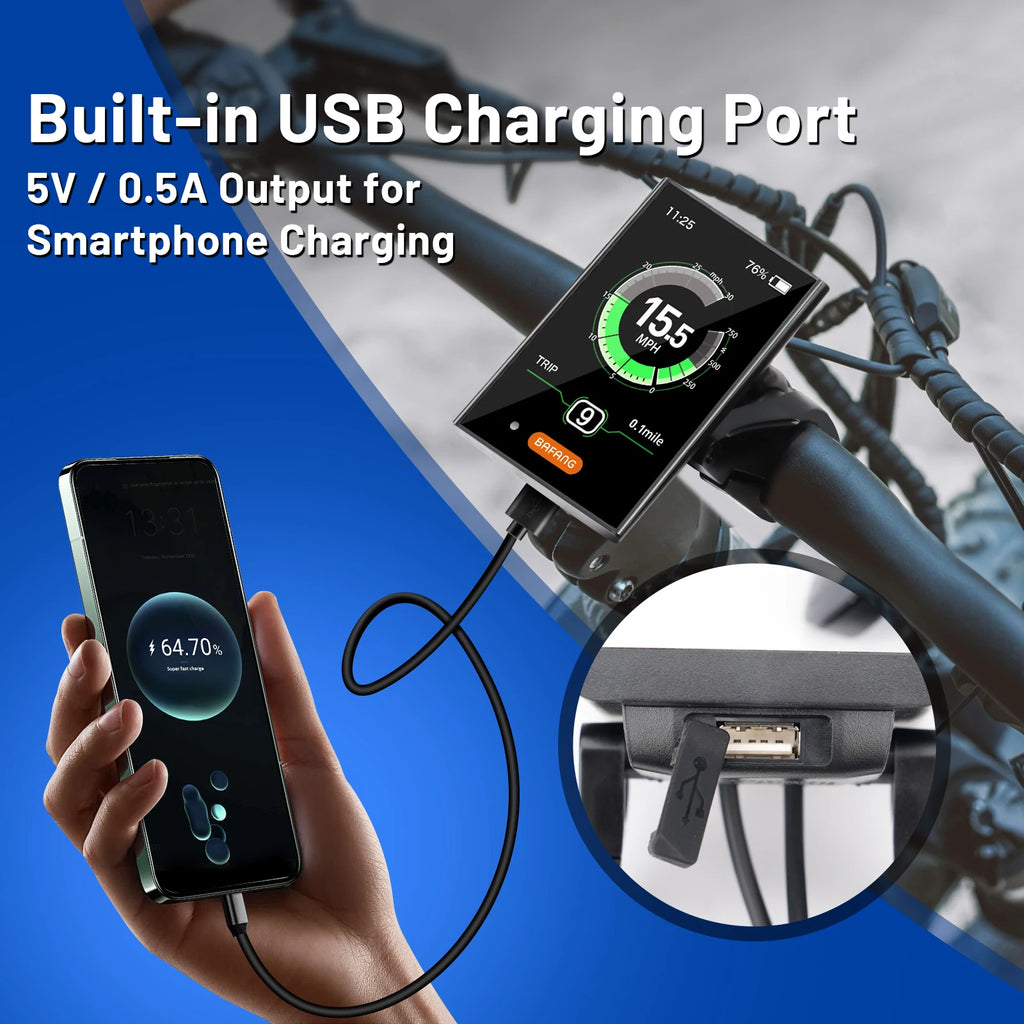

USB Output: 5V, 0.5A for phone charging

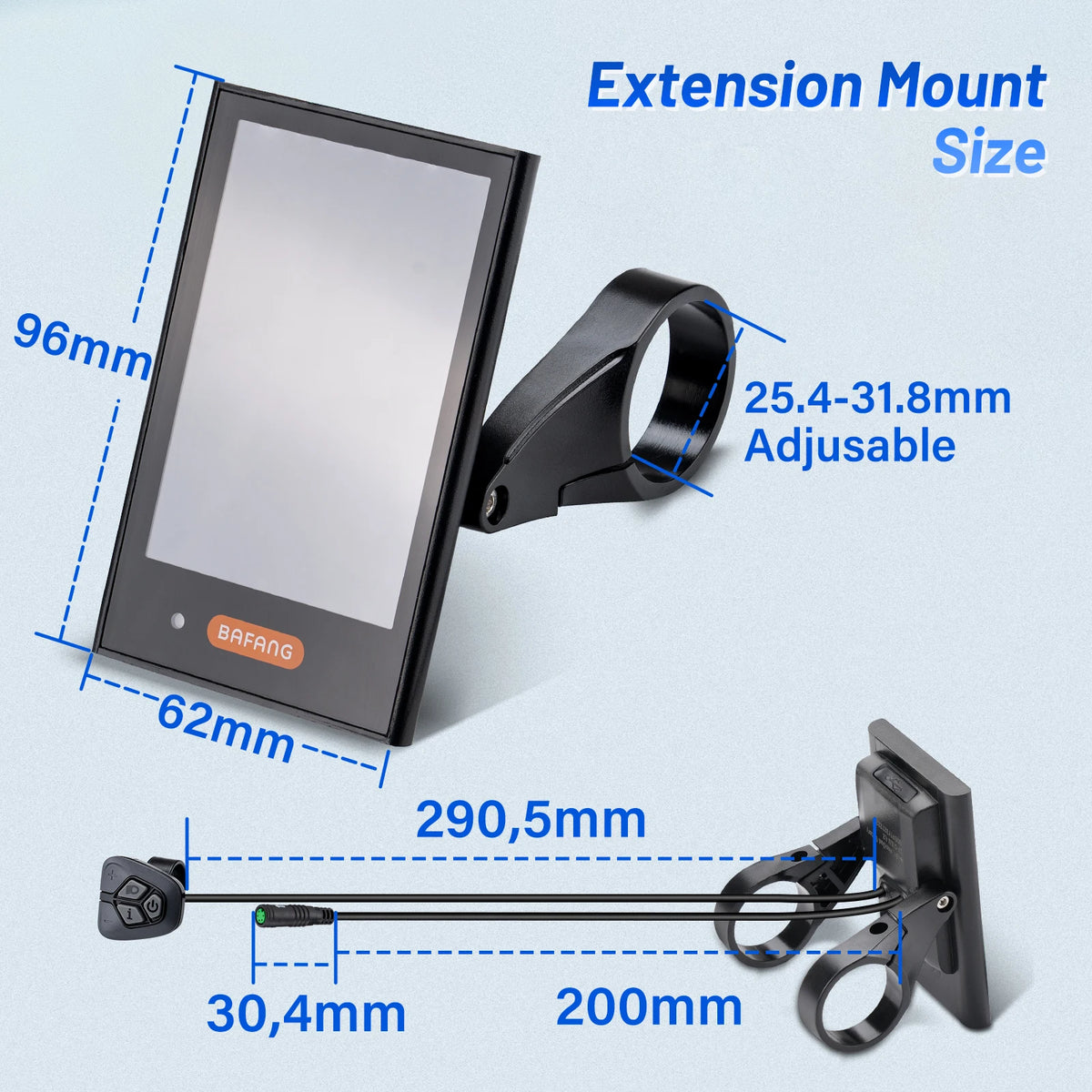

Mount Size: Adjustable for 25.4mm ~31.8mm handlebar

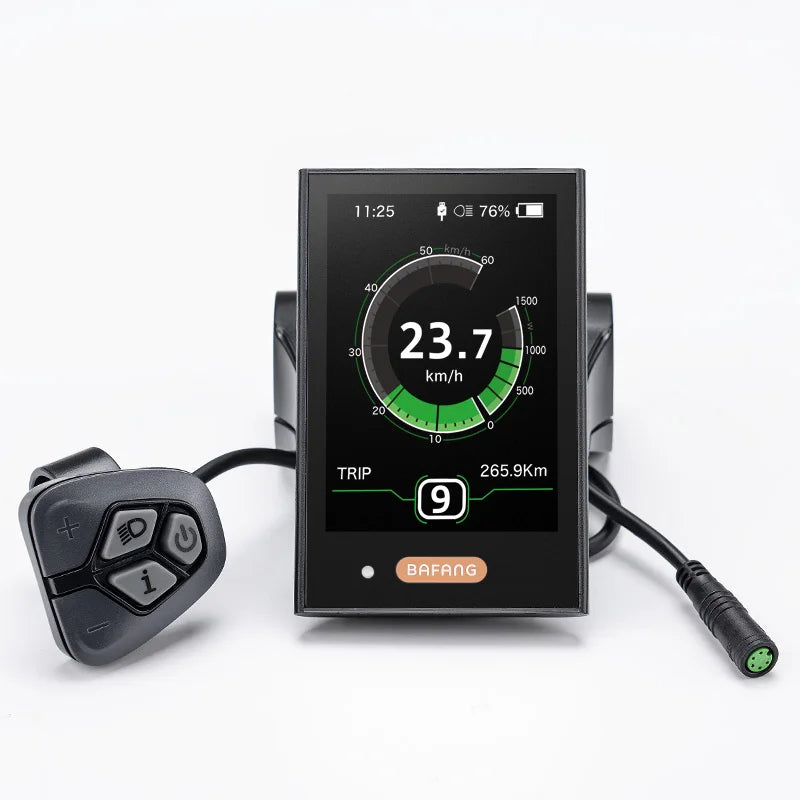

Display Content: Speed, Trip, Total Mileage, Battery, Power, Time
Connector: UART 5Pin Female Round

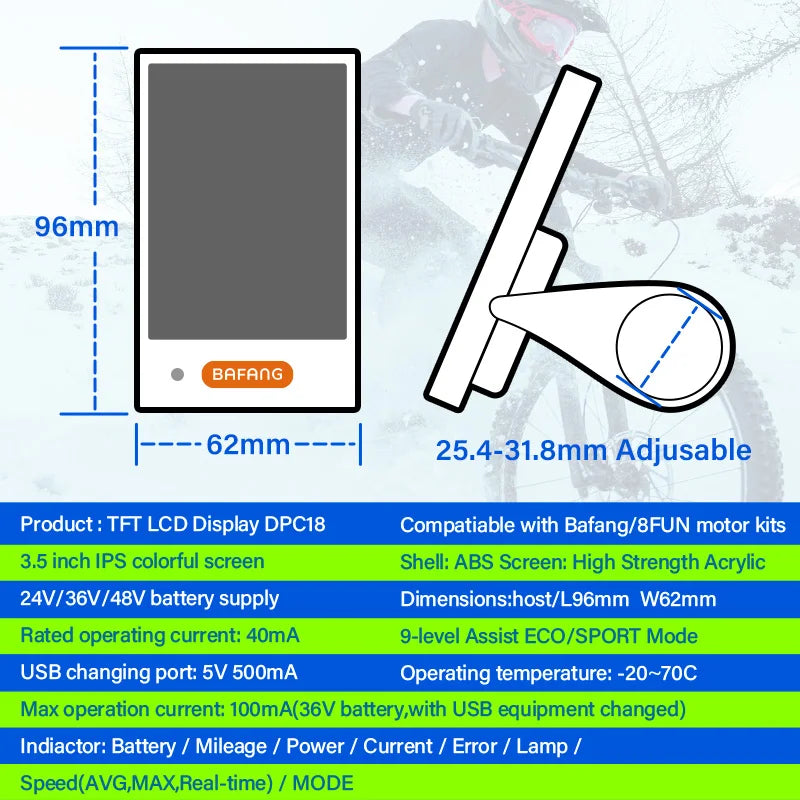

Display Dimension: 96mm × 62mm
Cable Length: 290.5mm

Package Includes：

1 × DPC18 TFT Display
1 × Handlebar Extension Mount
1 × Control Switch
1 × Connecting Cable

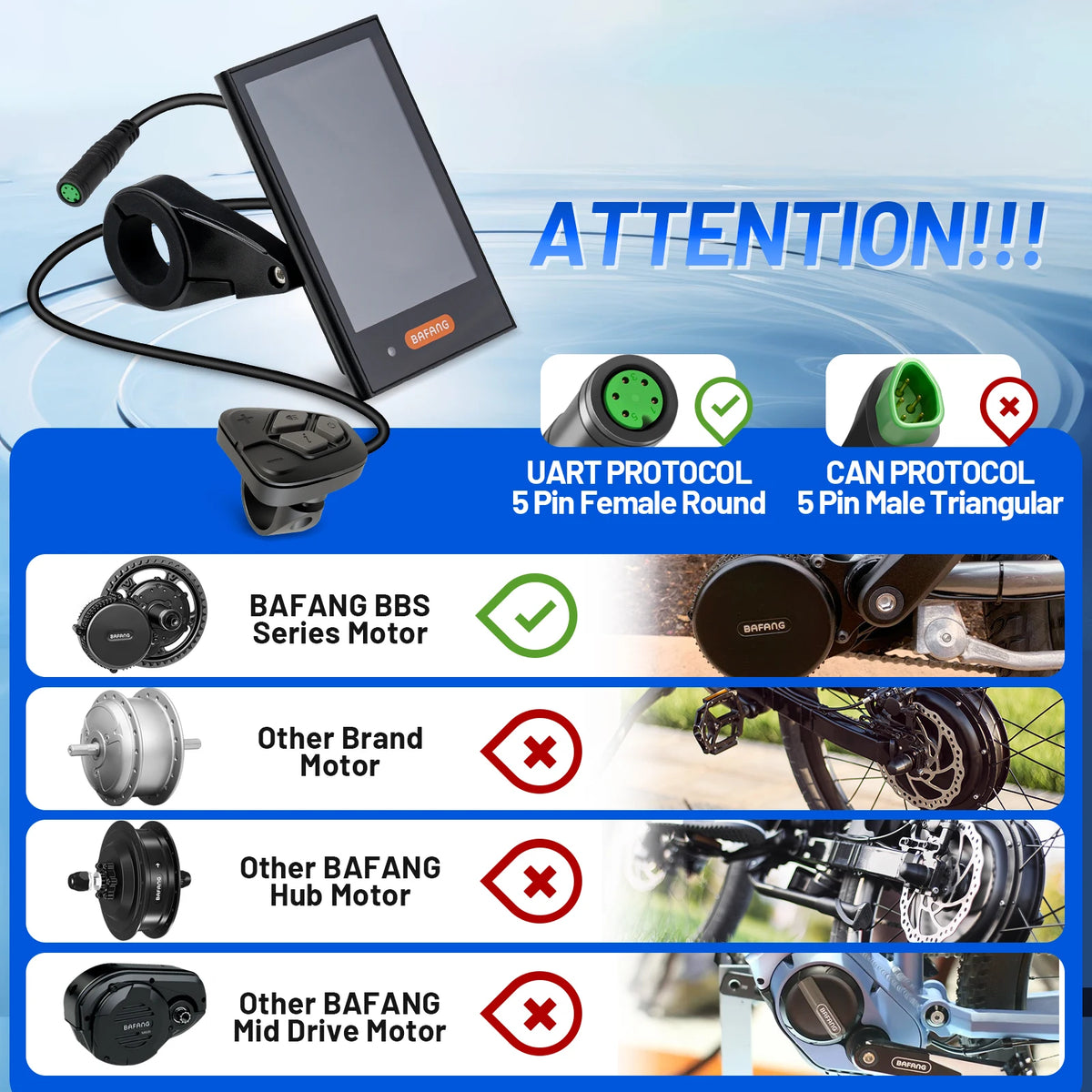

Compatibility Notice：

⚠️ Important Compatibility Warning

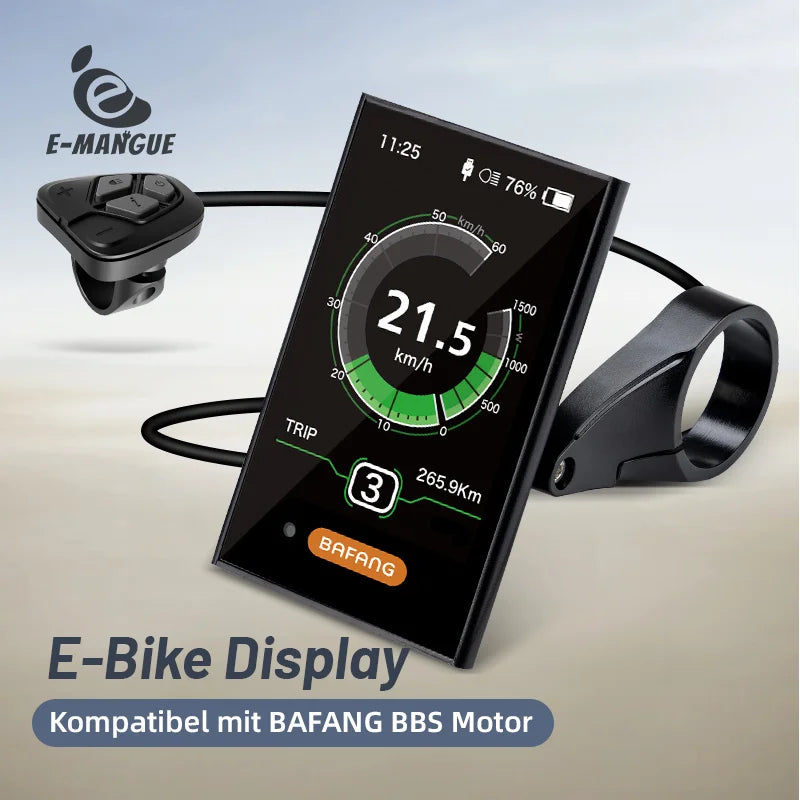

1. DPC18 works ONLY for Bafang UART BBS series mid motor (BBS01B, BBS02B, BBSHD).

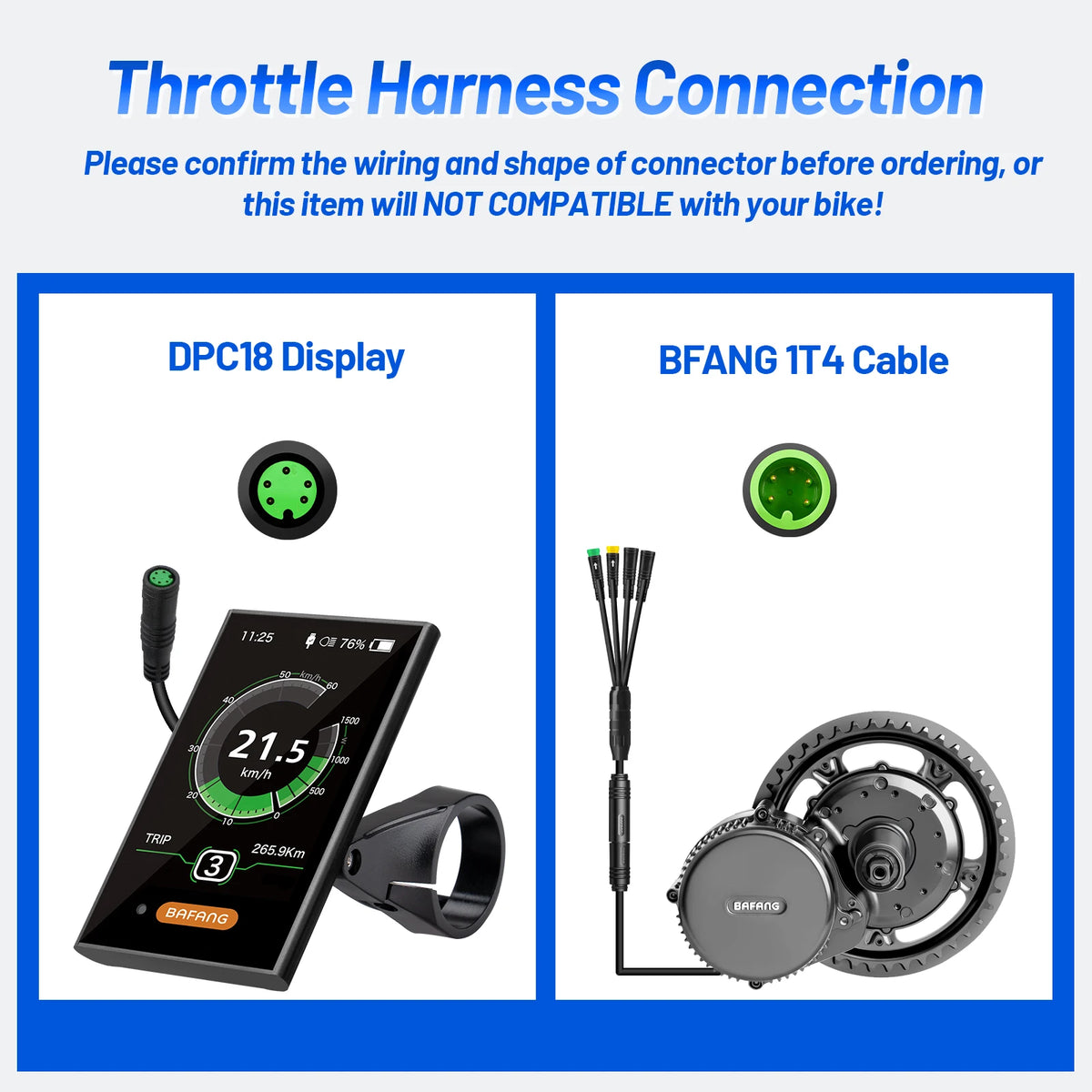

2. Connector: UART 5Pin Female Round plug. NOT compatible with CAN protocol triangular male plug.
3. NOT compatible: Bafang hub motor, other brand mid/hub motor, Bafang CAN version motors.
4. Please double check your motor protocol and connector shape before purchase. Mismatch cannot work.

Tips：

👉 Confirm your motor protocol and connector before ordering. UART and CAN are not interchangeable.
👉 IP65 only for water splash protection, DO NOT immerse in water.
👉 The USB port is 5V 0.5A low power output, only for emergency phone charging.
