SPECIFICATIONS

Brand Name: Dingtop Safety

Certification: CE

Color: Orange,black

High-concerned chemical: None

Material: Aramid fabric

Model Number: DGVI789

Origin: Mainland China

Size: L,M,S,XL,XS（old）,XXL,XXXL

！Please note the size of your order！

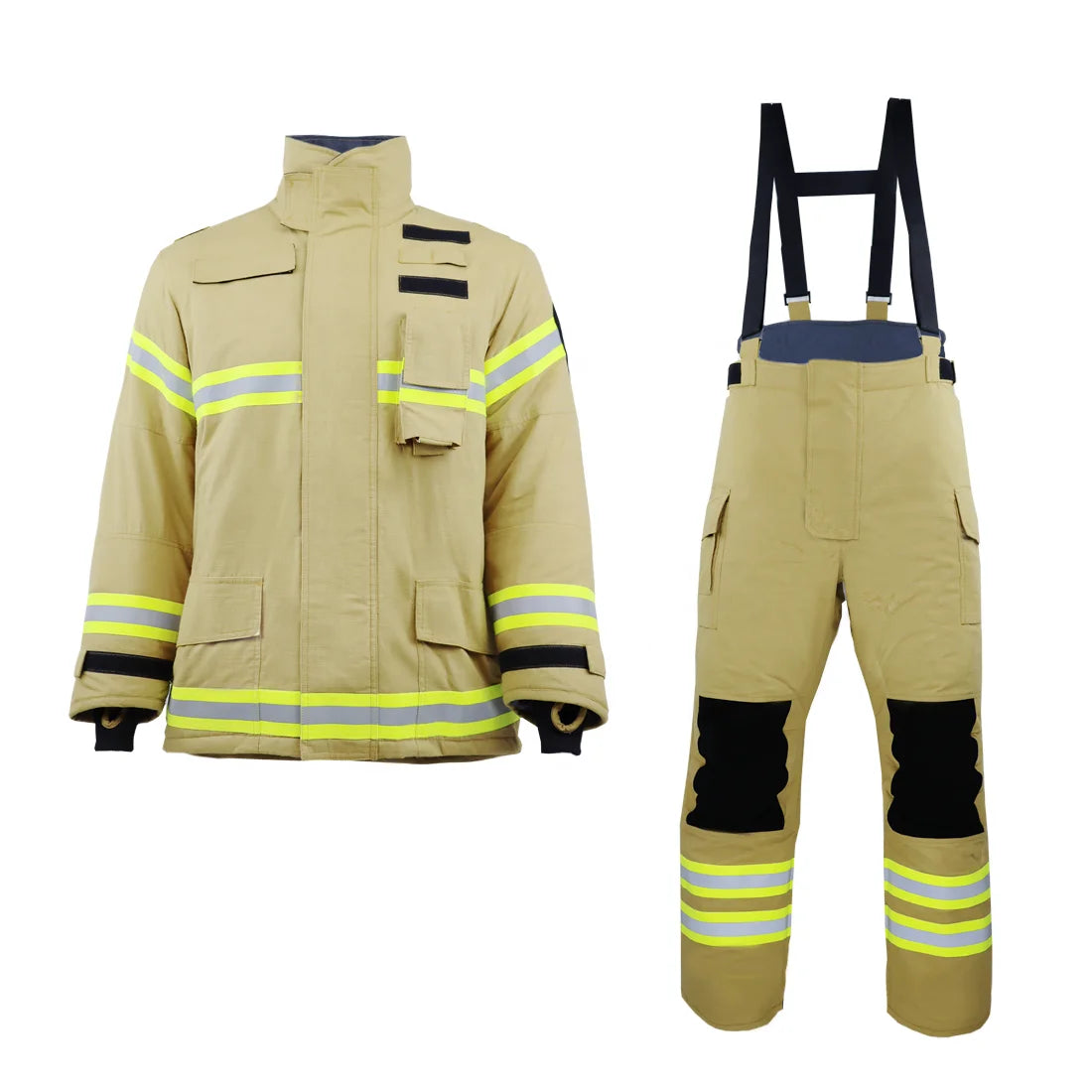

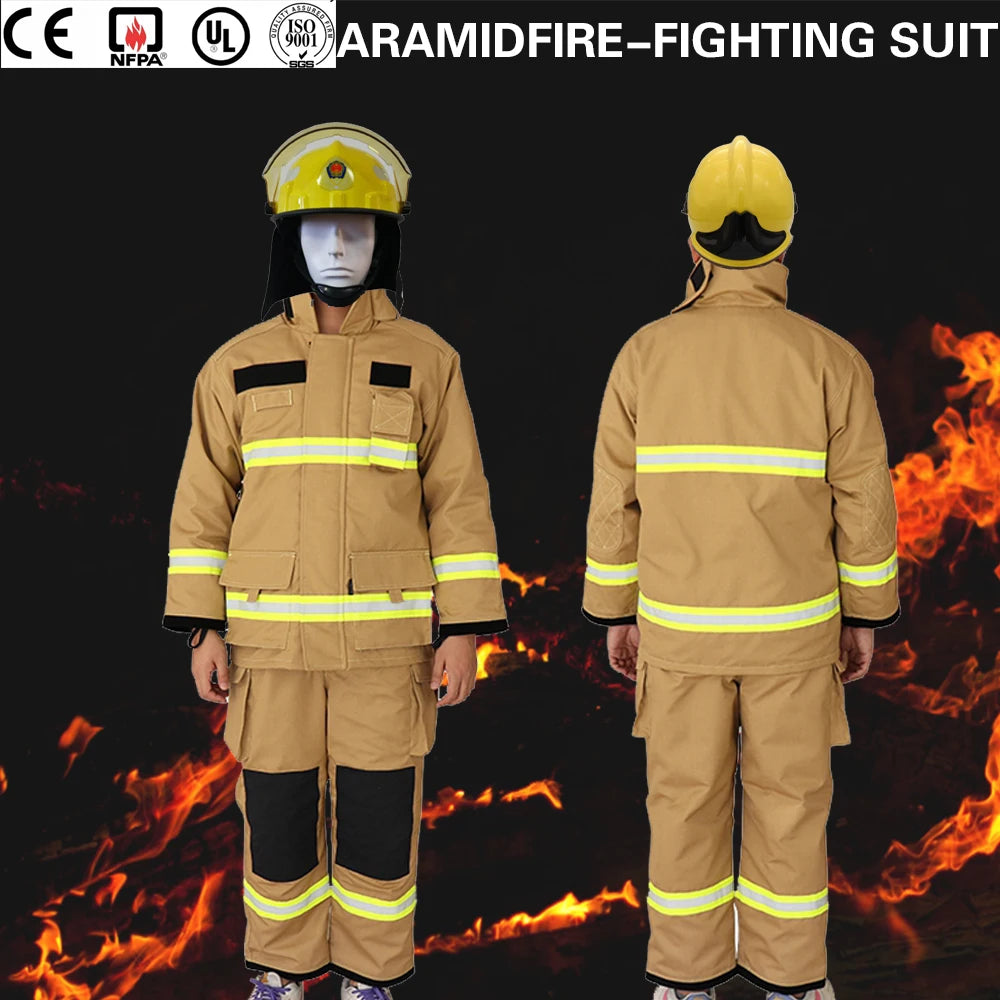

Europe Standard CE EN469 4 Layers Aramid Blue Firefighter Protective Fire Proximity Suit

Fire Proximity Suit Main Materials:

Out shell：93% Meta-aramid, 5% Para-aramid, 2% anti-static, 210gsm

Moisture barrier：M-Aramid/P-Aramid spunlaced felt laminated PTFE 105gsm

Thermal barrier：80%M-Aramid,20%P-Aramid spunlaced felt ,70gsm

Comfort Layer：50%M-Aramid ,50% FR viscose, 120gsm

a) Main performance

• Permanent flame retardant, heat insulation, waterproof, breathable, flexible, well-adapted.

• When working near a fire, it can effectively prevent heat conduction.

b) Main technical parameters

• Fire resistance performance

Damaged length: ≤10cm,

Continued burning time ≤2s,

No drop phenomenon

• Breaking strength: warp and weft≥650N

• Tearing strength: warp and weft≥100N

• Thermal stability: contraction≤10% 5 min 260℃, no changed on the surface.

• Water proof: ≥50Kpa

• TPP(heat protective performance): ≥28cal/cm2

• Front closed by heavy duty FR zipper

• Two big patch pocket ,one radio pocket on left chest ,closed by Velcro

• Tool pocket on right and left leg

• Hang loop on right chest to fix gloves or other tools

• FR yellow silver yellow reflective tape in 3” width 3-M Scotchlite

• Self fabric and padding on shoulder to make extra protection

• Extra abrasion resistant fabric with padding on knee and elbow

• High collar fully lined with throat closure tab

• FR drainage mesh into waist hem

• Knitted cuffs with thumb loop

• Elasticated braces with quick release buckles

Note: This link only contains clothing trousers, if you need helmet gloves and fire boots, please contact Thank you!

Jacket Collarhas a closure strap with Velcro to ensure complete protection to the neck.
There is a hook on the left chest.Radio pocket on the right chest with a flap and Velcro closure.

Aramid fiber knitted waist

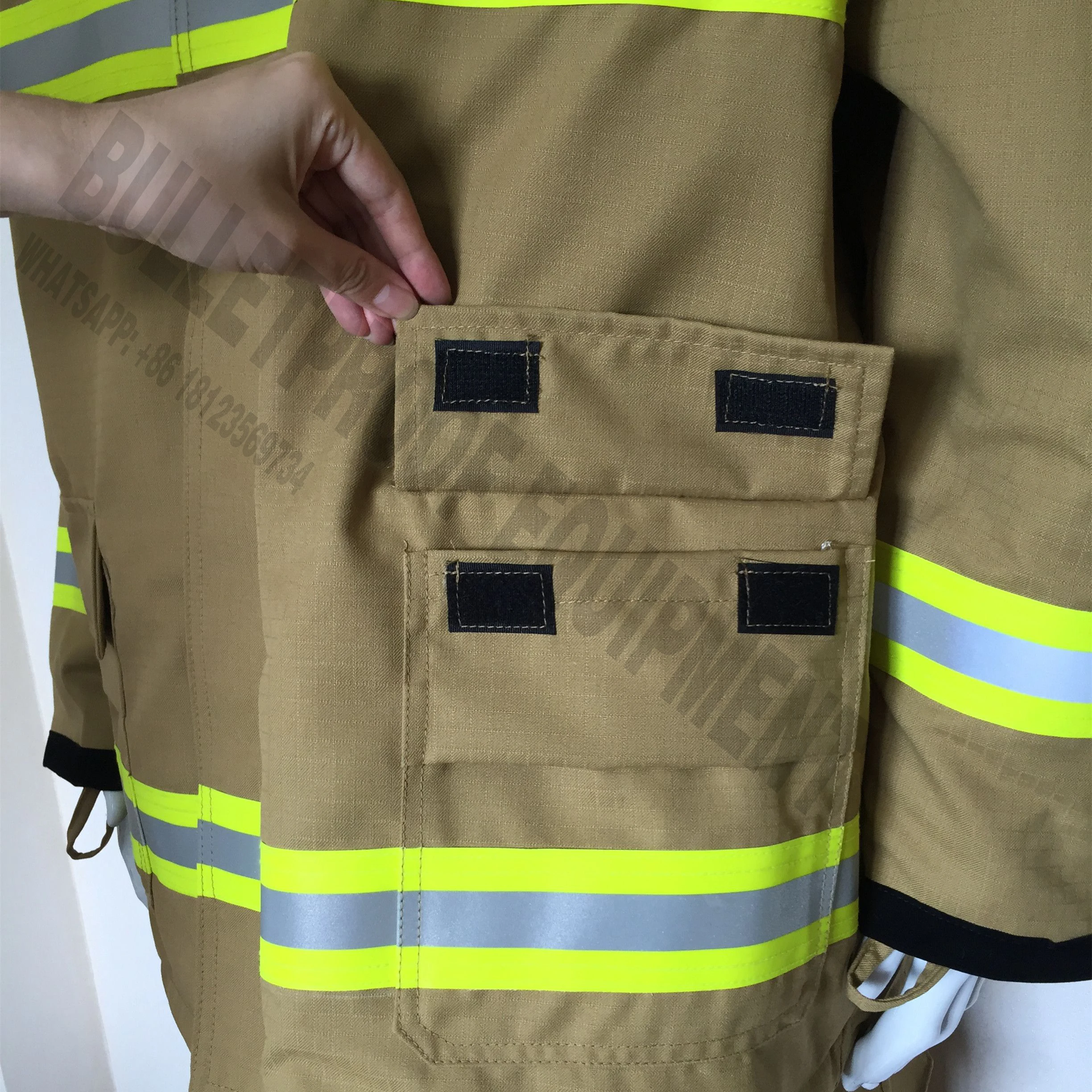

Two patch-type pocket on the lower side of the jacket with a flap and Velcro closure.

The Jacket designed with a non-flammable and heavy-duty moulded polyester fastened zip

Front placket is coveredby the flap with flame retardant Velcro.

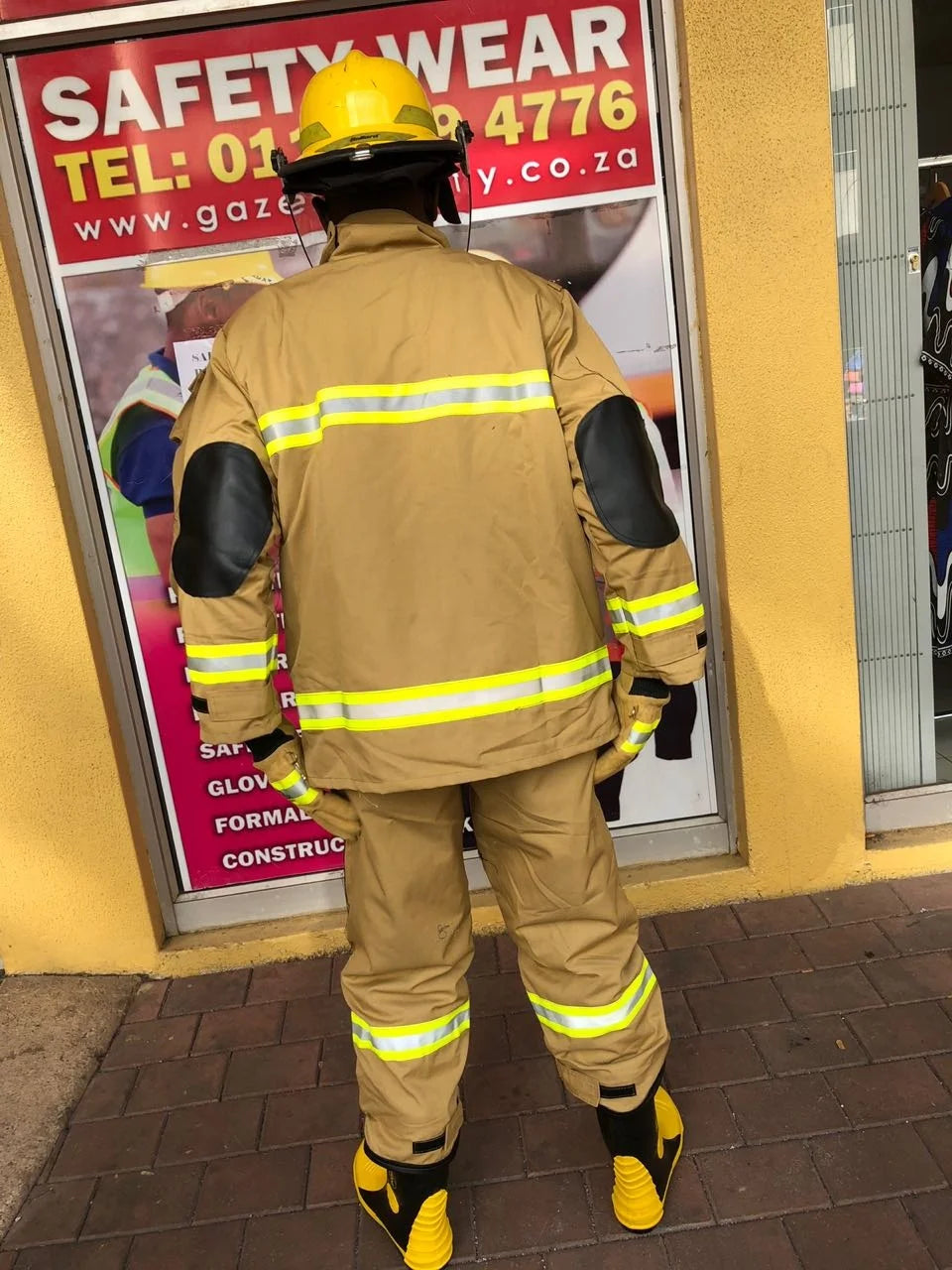

50mm yellow-silver-yellow reflective strips positionedon the chest, bottom and arms of the jacket

Quick-releasezipper is optional.

There is water-proof cloth (black part) at the bottom of the inside of the jacket to prevent water from entering the inside ofthe clothes.

It can also be made into a removable type.

50mm yellow-silver-yellow reflective strips positionedon the lower part of the pant.

Trousers have removable H-style suspenders made of heavy-duty elastic band. They are adjustable in length via double loop safety buckles and draw-loop.

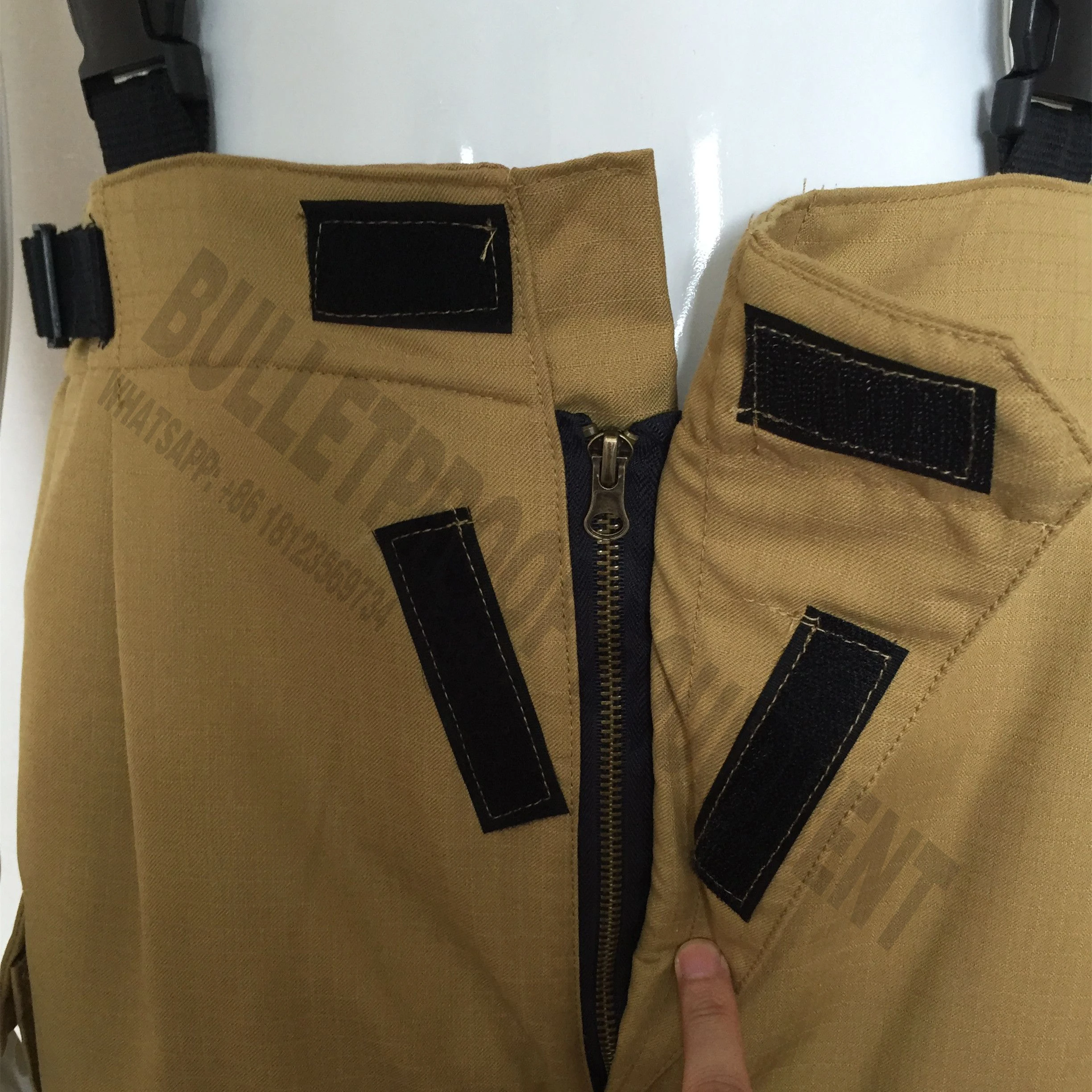

Trousers zip designed with a non-flammable and heavy-duty moulded polyester with zip fasteners, with flap and Velcro closure.

Trousers side pocket: the pocket withVelcro and a flap positioned at the upper center of the pocket.

There is a nylon buckle on each side of the waist of the pants that can adjust the size of the pants.

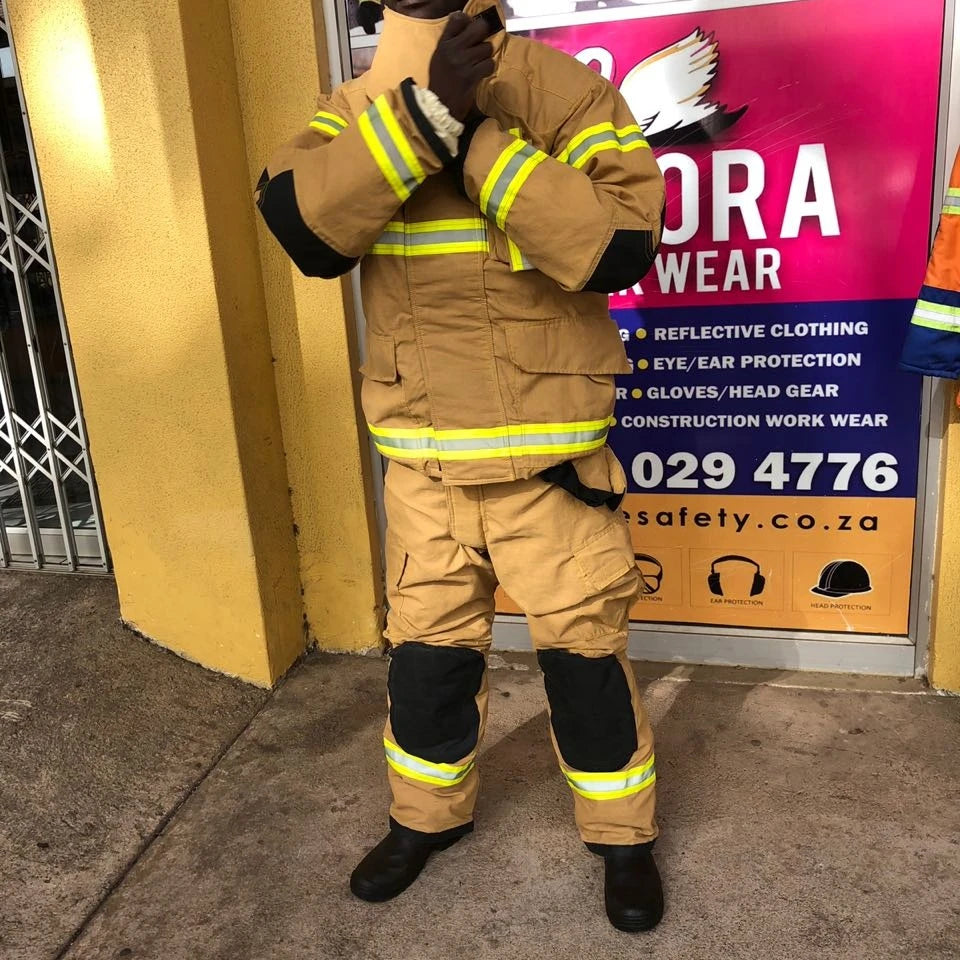

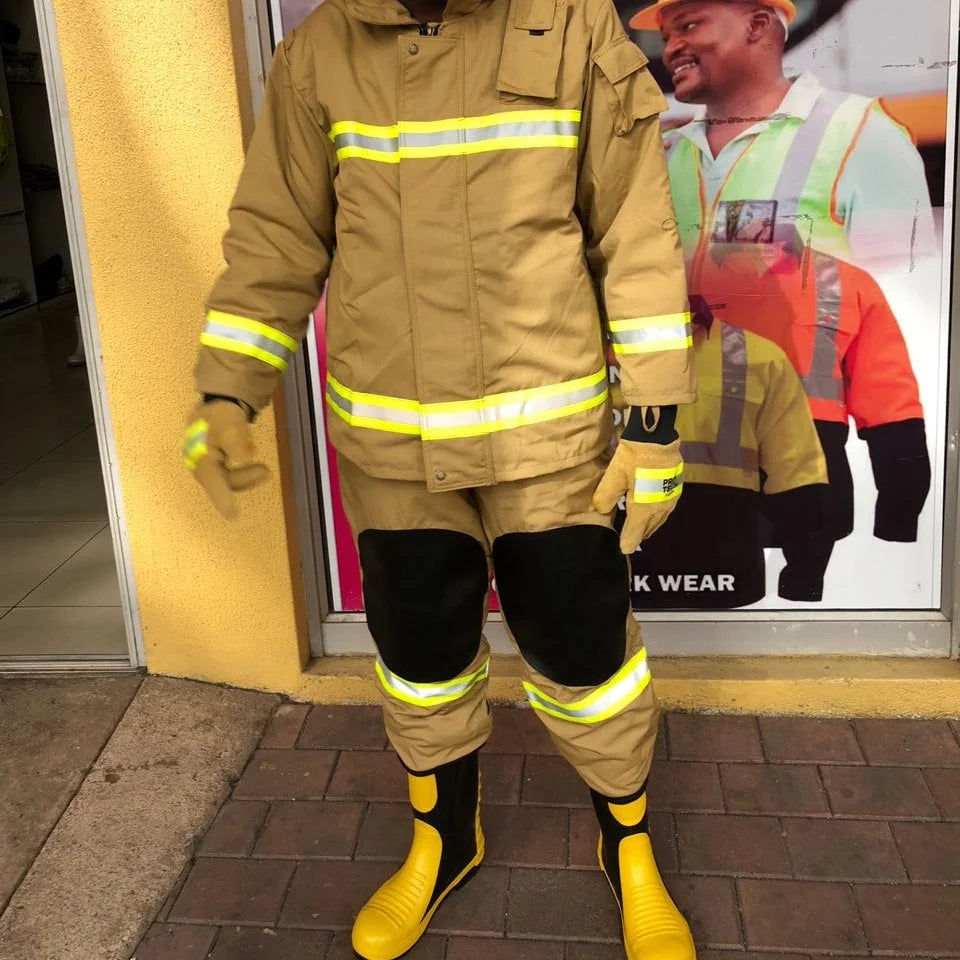

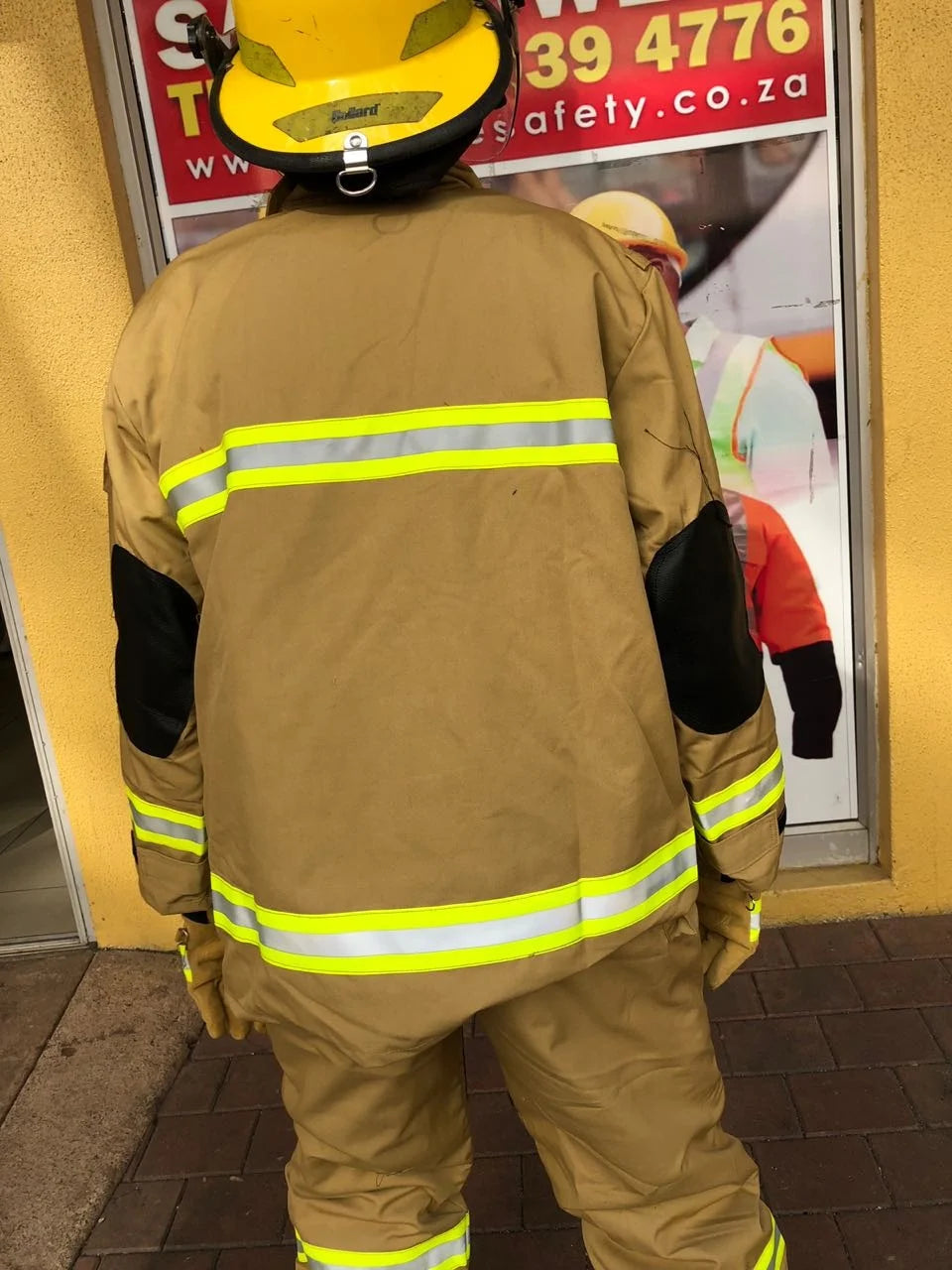

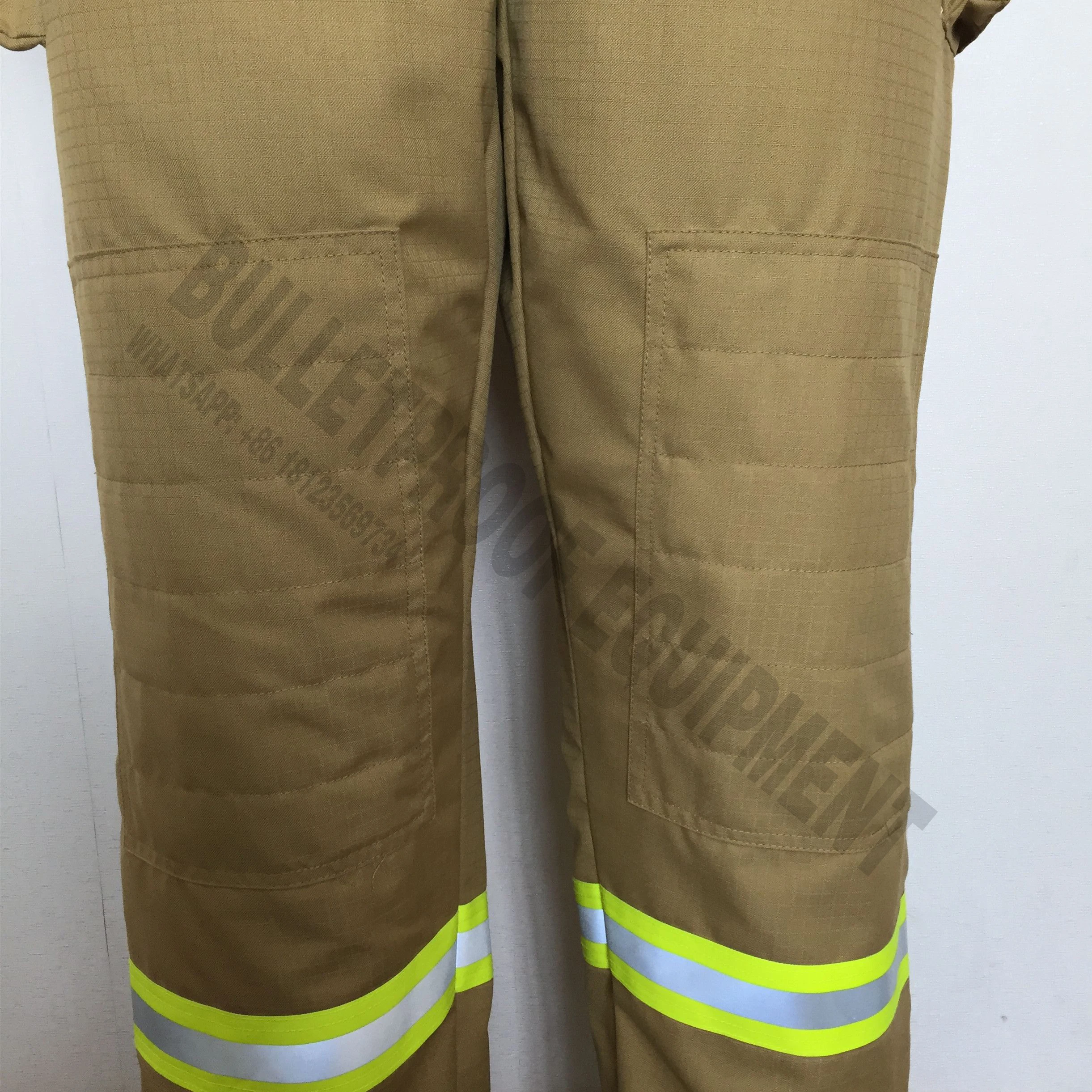

Reinforcements on elbows, shoulders and knees

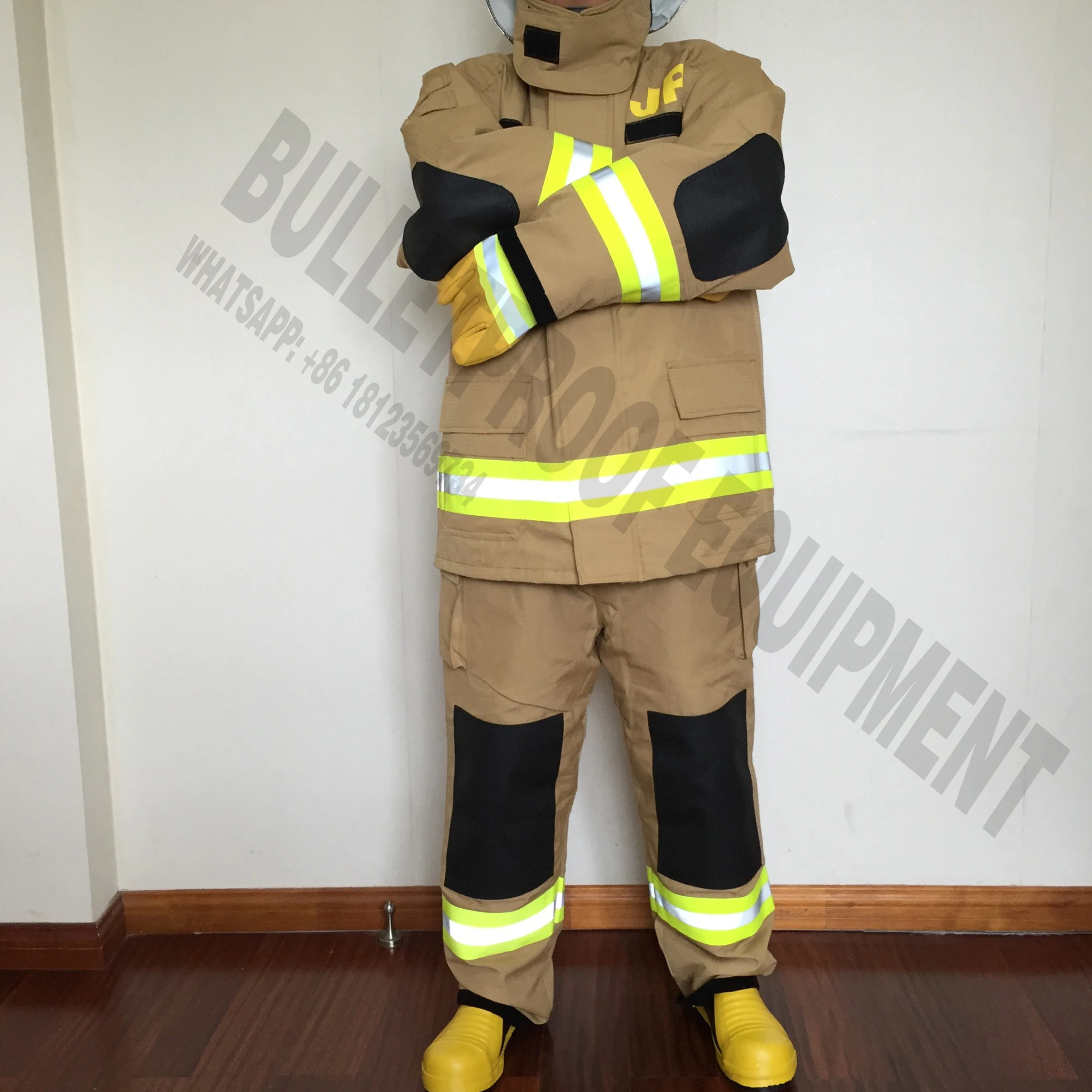

The black flame-retardant material as shown in the picture is optional as the reinforcement layer (material)Printing on the back is optional, can be reflective yellow,
silver or other colors.

DRD is optional
