Electric Bicycle Accessories 36V/48V Electric Bike 350W Brushless DC Motor Controller For Electric Bicycle E-bike Scooter Diy
Default Title
£14.39
Skip to product information
Electric Bicycle Accessories 36V/48V Electric Bike 350W Brushless DC Motor Controller For Electric Bicycle E-bike Scooter Diy
£14.39
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: 36V/48V Electric Bike 350W Brushless DC Motor Controller,Brushless DC Motor Controller
Motor: DC Motor
Motor Type: DC Motor
Operating Voltage: DC 36V-48V
Origin: Mainland China
Output Power: 350W
Electric Bicycle Accessories 36V/48V Electric Bike 350W Brushless DC Motor Controller For Electric Bicycle E-bike Scooter Diy
Specification:
Casing material: Aluminium
Size: approx. 103*70*35mm
Rated voltage: DC 36V/48V
Rated power: 350W
Current: 16-18A
Applicable model: electric bicycle, electric scooter.
Feature:
Anti-coaste, vercurrent protection.
Automatic identification the 36V and 48V .
Automatic identification the Hall sensor .
Automatic identification the Phase angle of 60 degrees and 120 degrees.
Low level brake.
High level brake.
Brushless motor controller.
Compact design for easy installation.
Durable in use.

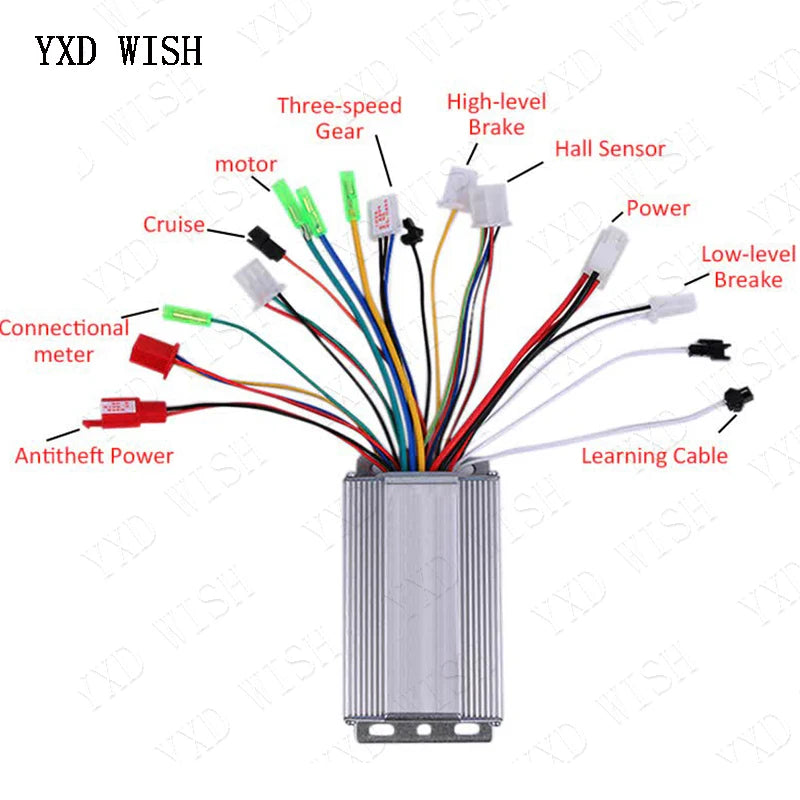

Controller Installation Method:
First, confirm the positive and negative poles of the power supply. The positive and negative poles of the power supply must not be reversed. Other functional lines can try to connect until they are connected rightly.
1. The self-learning line is inserted first.
2. Connect the power cord and note that the positive and negative poles should not be reversed. Connect the electric door lock line, Hall line, phase line, and turn line.
3. When the power is turned on, the motor will rotate. After it has stabilized its rotation, if it is reversed, pulls off the self-learning line, and then it plugs in the self-learning line. It will rotate foreward. After it is stable, unplug the self-learning line is ok.
4. After the controller learns it well, pick up the features you have on your car, such as anti-theft, three-speed, reverse, power off, and power assistance.
Package included:
1 x Brushless Motor Controller
Note:
Please allow 0-1cm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Casing material: Aluminium
Size: approx. 103*70*35mm
Rated voltage: DC 36V/48V
Rated power: 350W
Current: 16-18A
Applicable model: electric bicycle, electric scooter.
Feature:
Anti-coaste, vercurrent protection.
Automatic identification the 36V and 48V .
Automatic identification the Hall sensor .
Automatic identification the Phase angle of 60 degrees and 120 degrees.
Low level brake.
High level brake.
Brushless motor controller.
Compact design for easy installation.
Durable in use.
Controller Installation Method:
First, confirm the positive and negative poles of the power supply. The positive and negative poles of the power supply must not be reversed. Other functional lines can try to connect until they are connected rightly.
1. The self-learning line is inserted first.
2. Connect the power cord and note that the positive and negative poles should not be reversed. Connect the electric door lock line, Hall line, phase line, and turn line.
3. When the power is turned on, the motor will rotate. After it has stabilized its rotation, if it is reversed, pulls off the self-learning line, and then it plugs in the self-learning line. It will rotate foreward. After it is stable, unplug the self-learning line is ok.
4. After the controller learns it well, pick up the features you have on your car, such as anti-theft, three-speed, reverse, power off, and power assistance.
Package included:
1 x Brushless Motor Controller
Note:
Please allow 0-1cm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
