SPECIFICATIONS

AC Charging Input: 300W - 500W

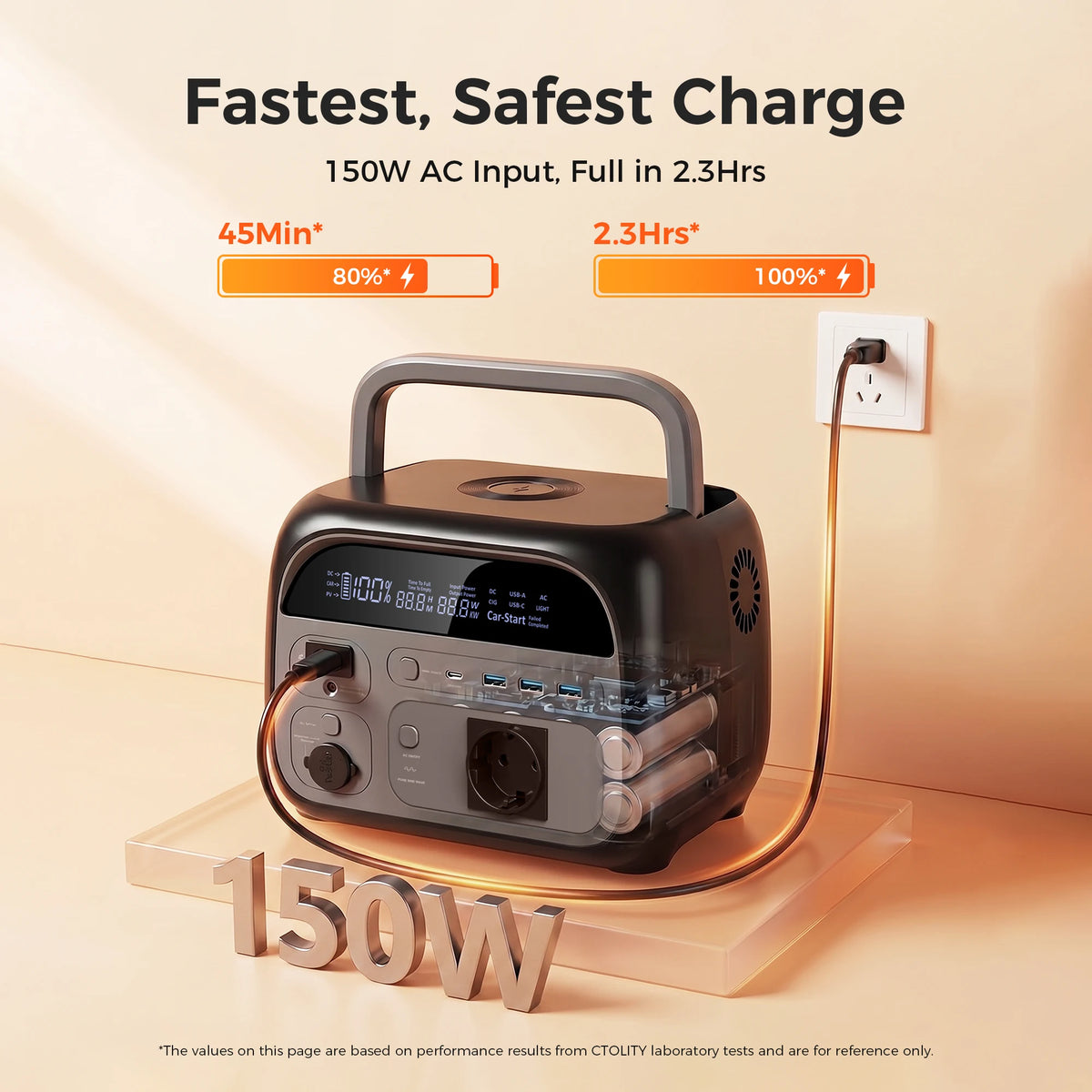

AC charging: 150W

AC output: 500W

Application: RV

Battery Number: 1

Battery rated power: 345.6wh,192wh

Brand Name: CTOLITY

Bundle: Bundle 1

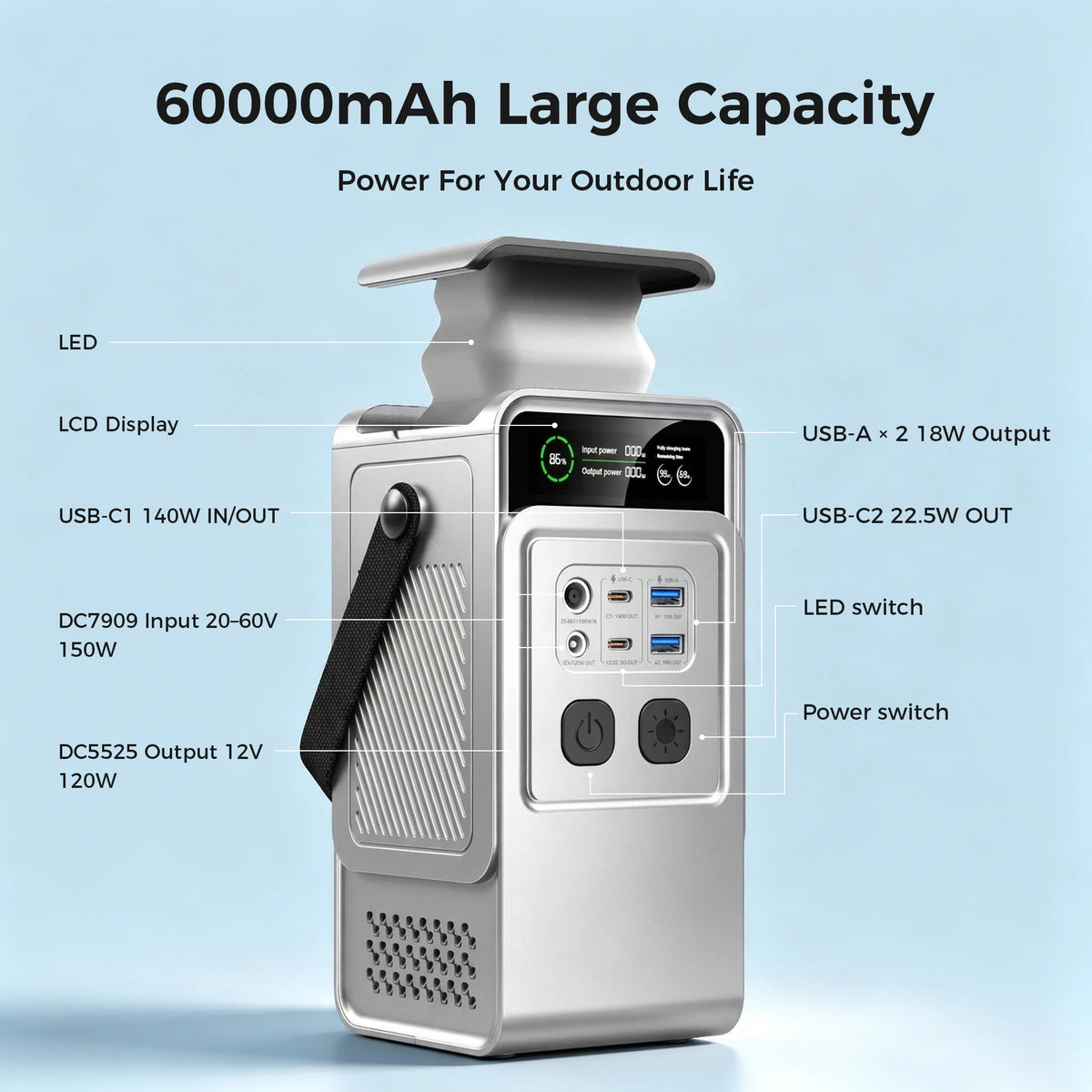

Capacity: 108000mAh,60000mAh

Car charging: 12V8A 100W

Certification: CE,FCC,RoHS,weee,UL

Connection: Other

Cycle lifespan: 3000 cycles>80%

DC output: 12V 120W

Display screen: Yes

High-concerned chemical: none

Model: AP200

Model Number: AP400 500W Portable Power Station

Net Weight: < 10Kg

Nominal Capacity: >3500mAh

Origin: Mainland China

Replacement Battery: No

Set Type: Charger Sets

Solar Charging Input: < 200W

Solar panel charging: 12V~26V 150W

Type: LiFePO4

UPS: Switching time between mains power and battery:<30ms

USB output: Type-C 22.5W,USB 3 :5V3A/9V2A/12V1.5A 18W MAX

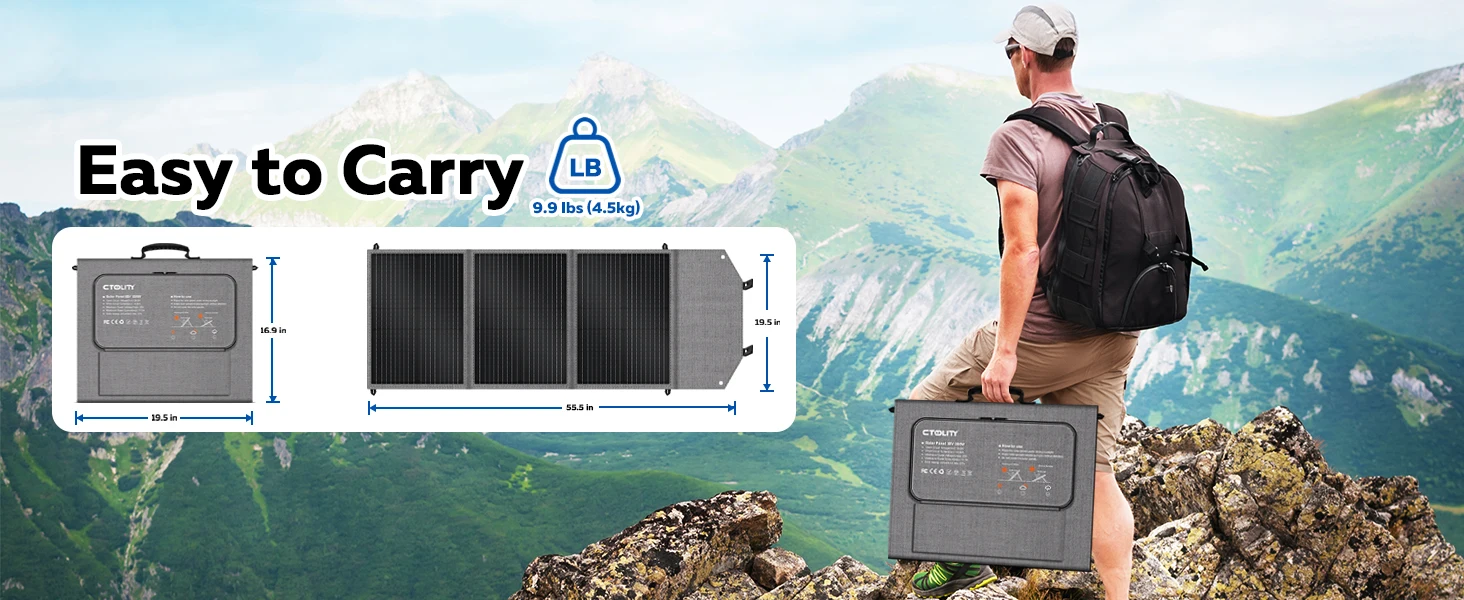

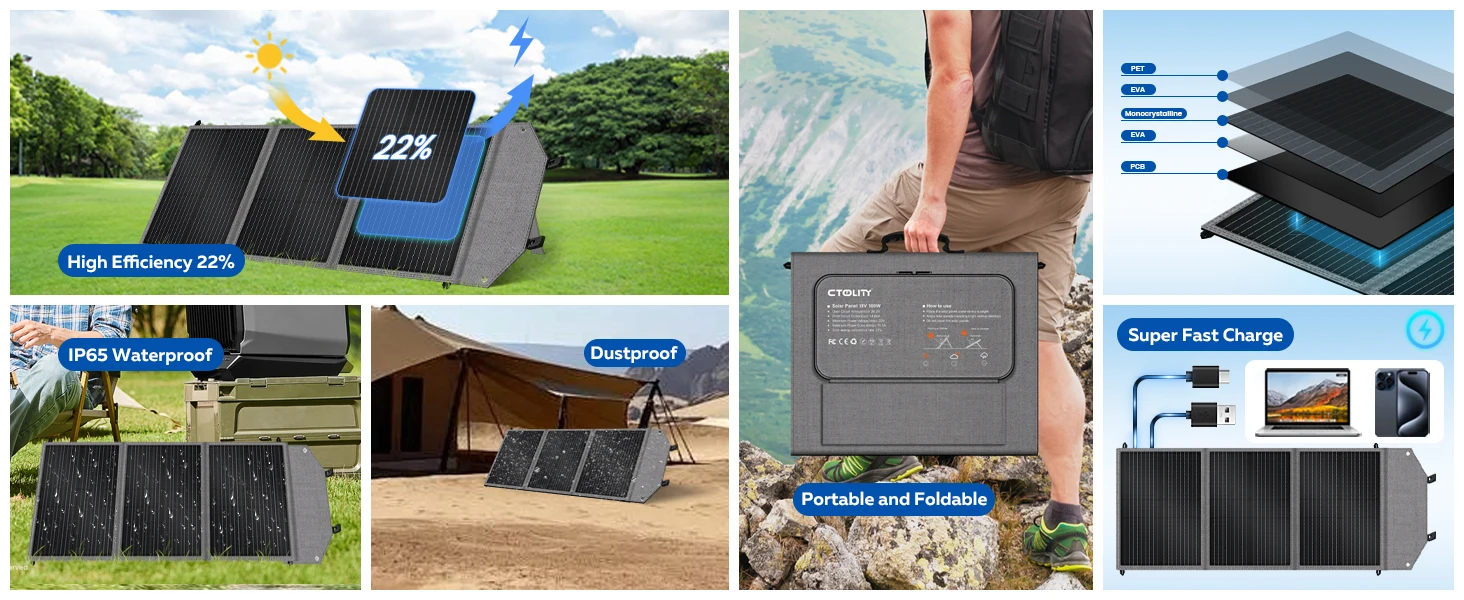

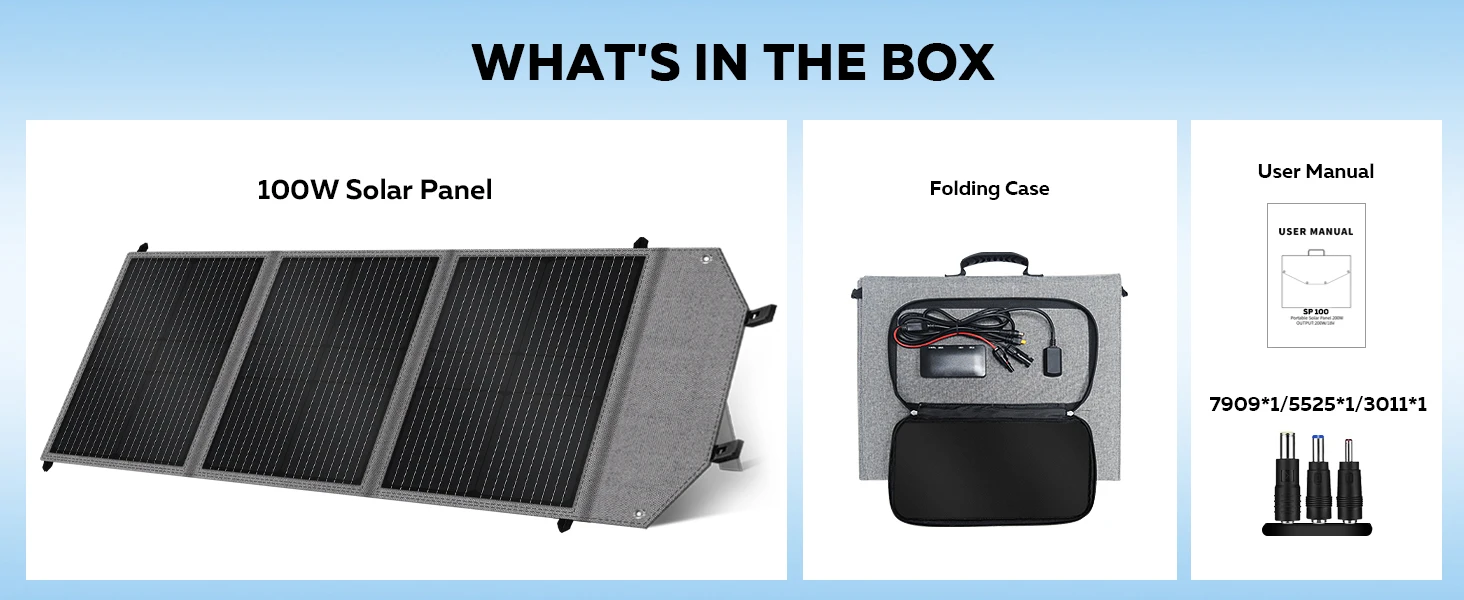

Solar panel: 100W

Folding &Bracket Number: 3F 2Bracket

Folding Size: 49.5*41*6cm

Open Size: 49.5*141.2*5cm

Packing Size: 56*49*8cm Pizza box

NW: 3.36KG GW: 4.6KG

Outer box size：58*50*9cm

GW: 4.6KG （1PCS/Box）

Chip Size: Single crystal silicon182

Material: PET+600D

Conversion efficiency: 23%

Output voltage: 20.5V (3 strings )

Output current:4.88A （Max）

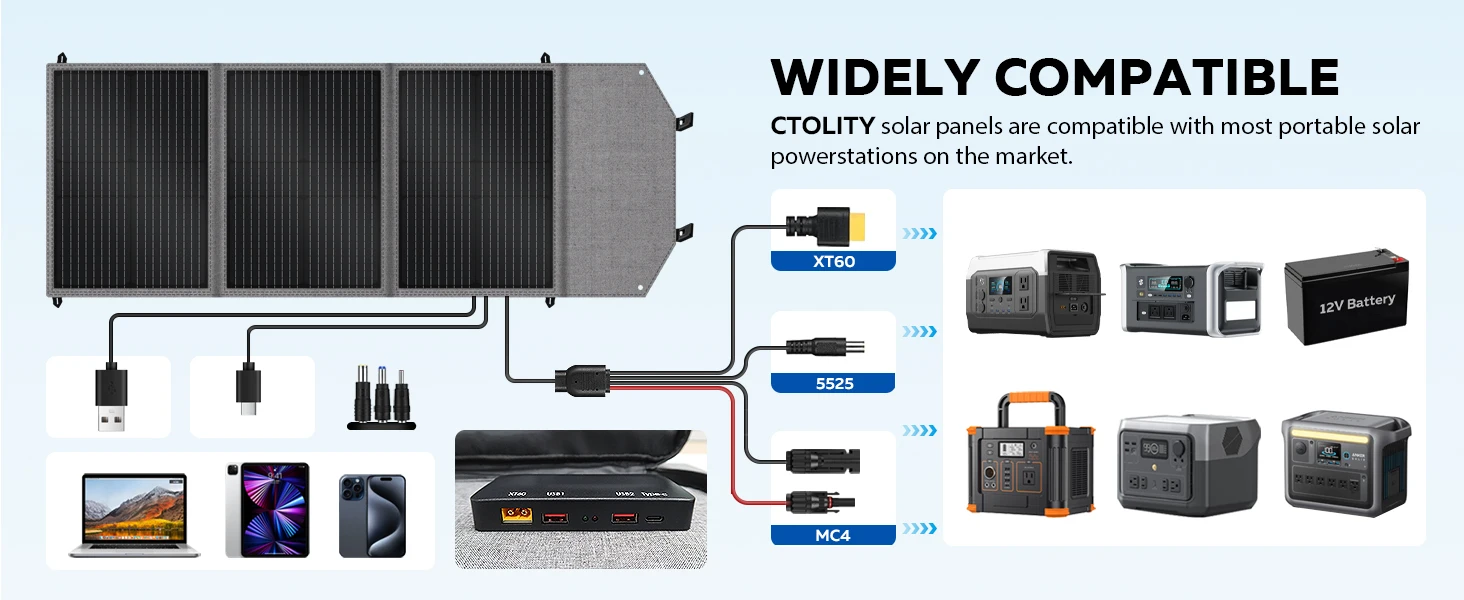

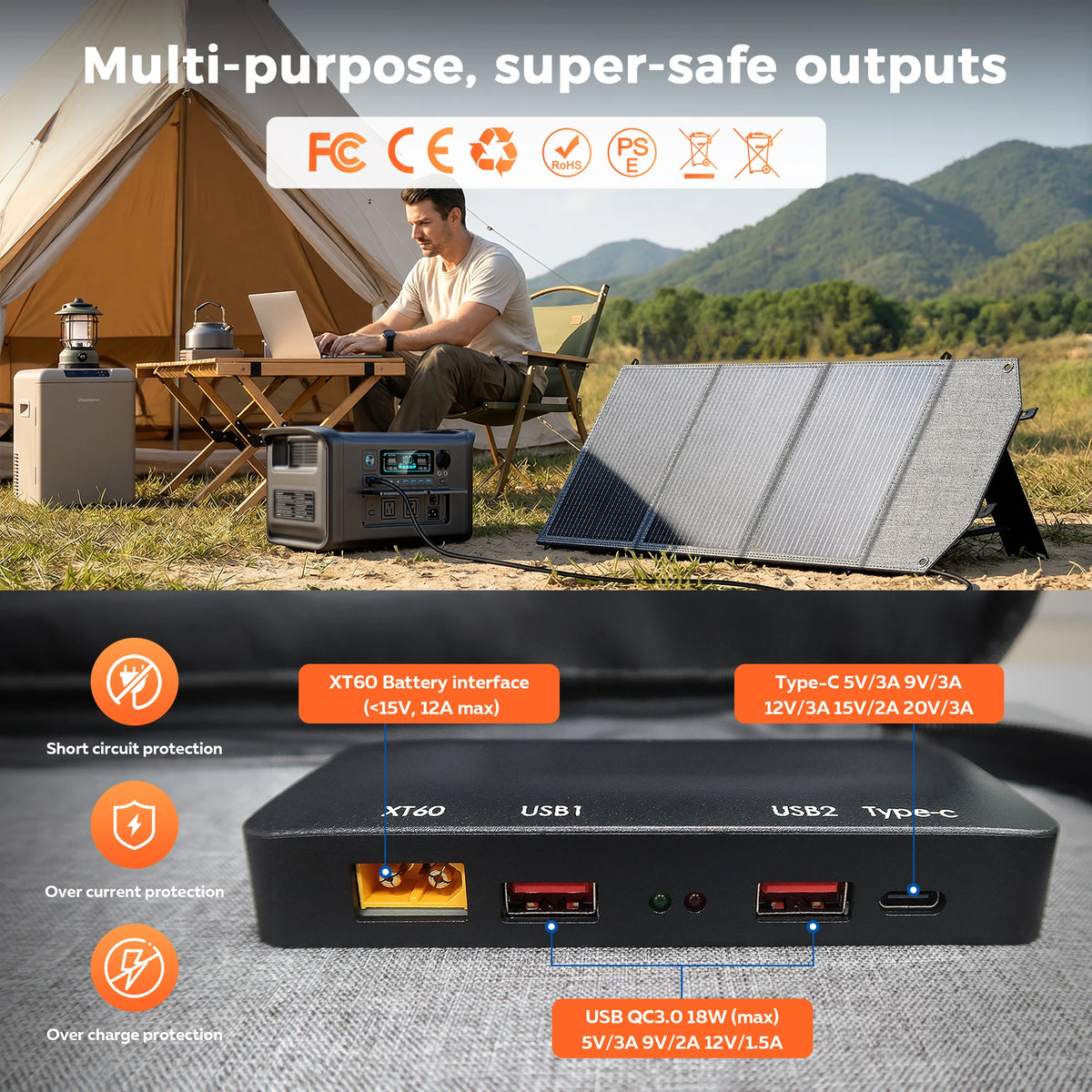

Junction box: PD45W+QC3.018W+USB5（XT60 output: PWM <15V）

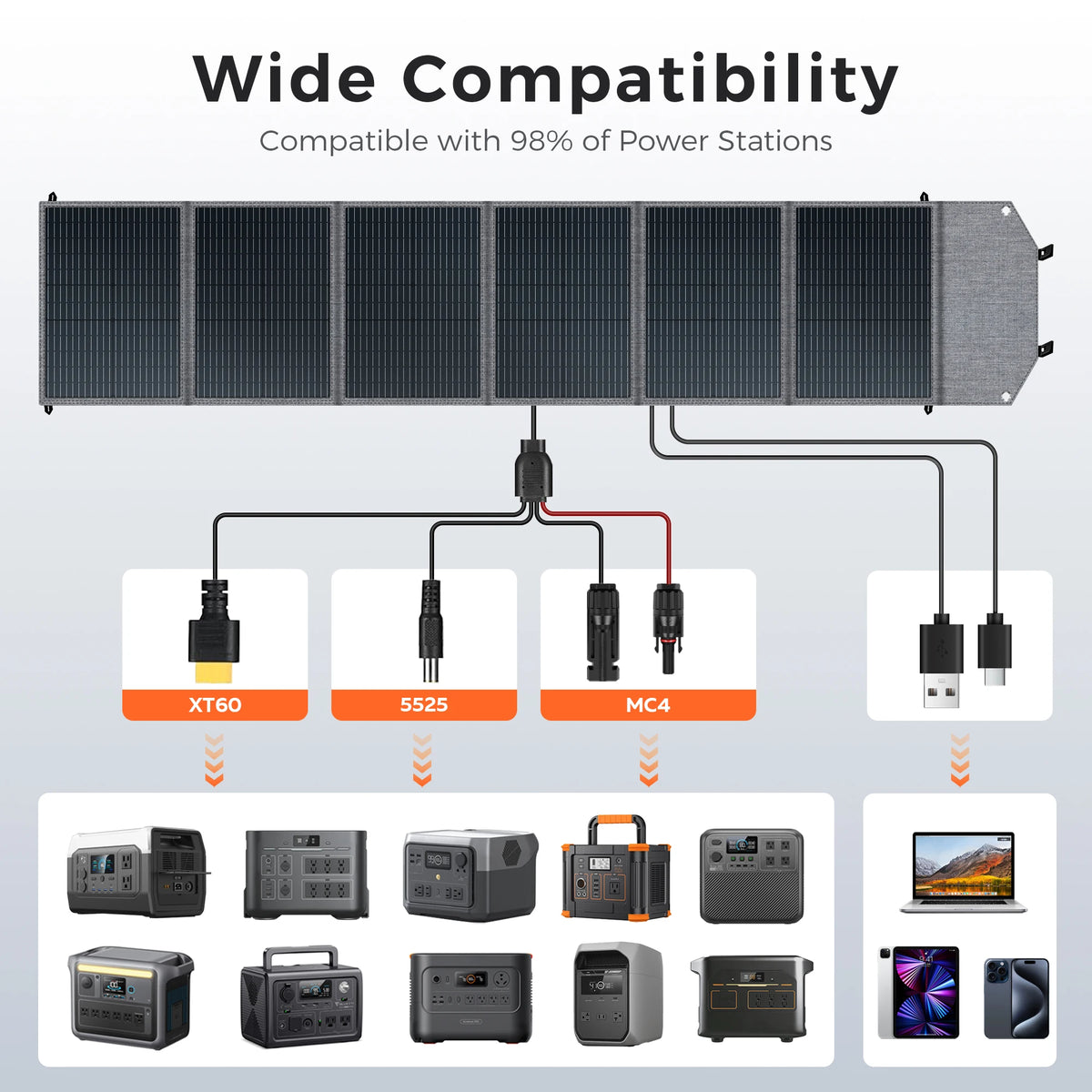

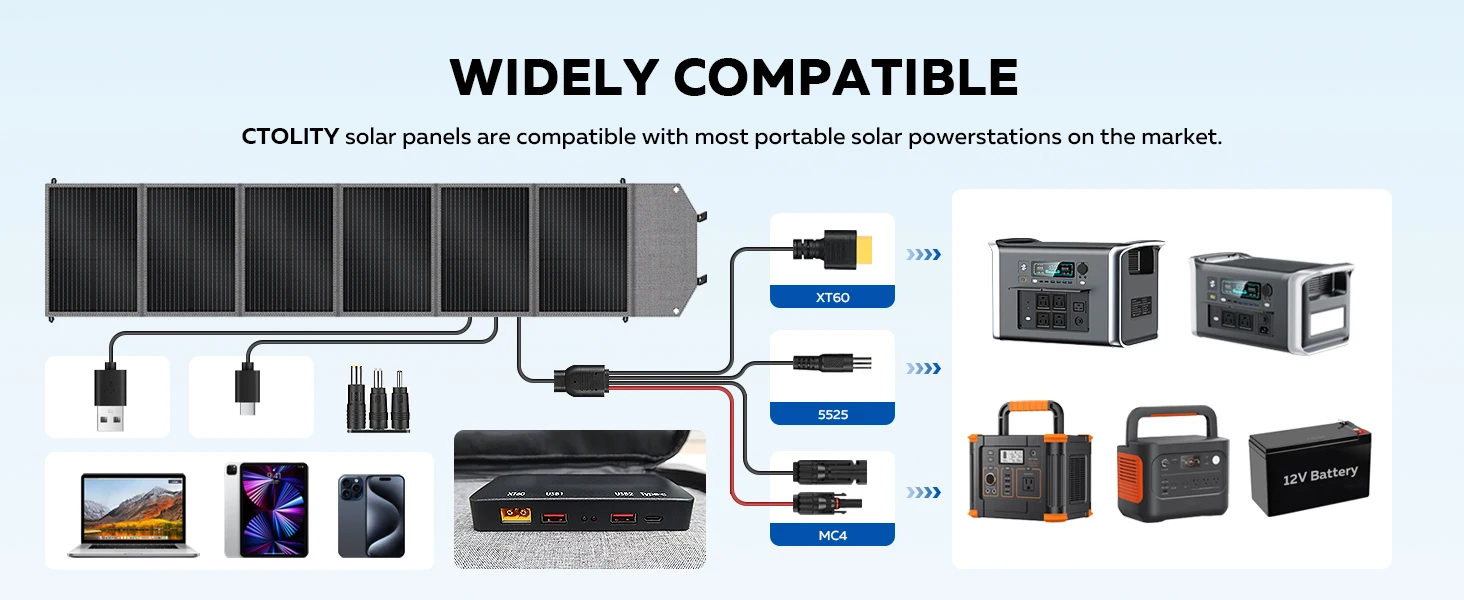

Cables and plugs: 18AWG 3M MC4+XT60 5525

Accessories：5521female to：5525+7909+35135

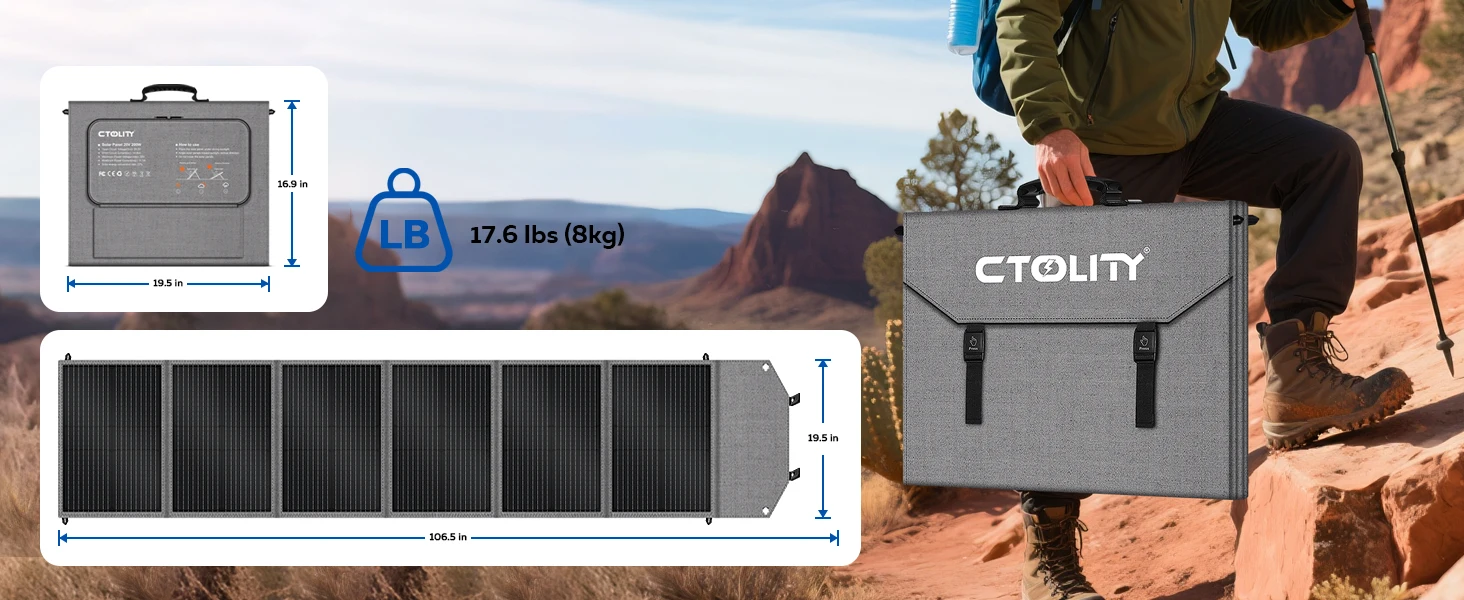

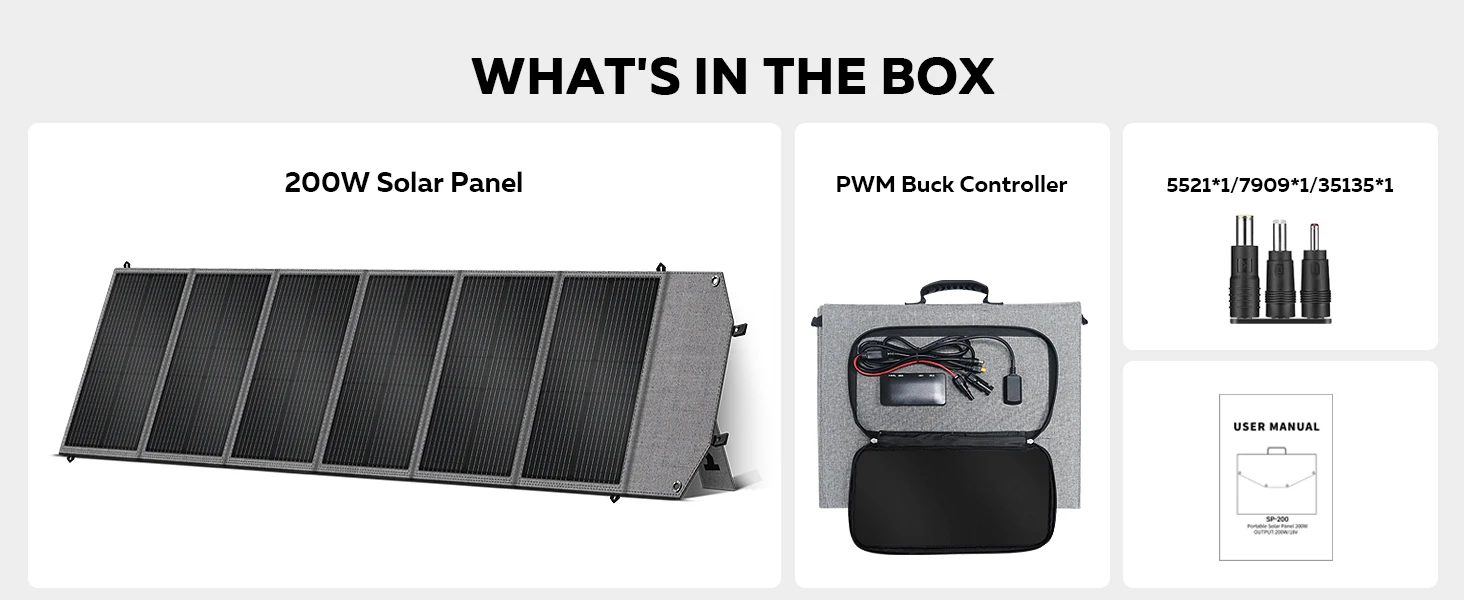

Solar panel: 200W

Folding &Bracket Number: 6F 4Bracket

Folding Size: 49.5*43*8cm

Open Size: 45.5*267.5*5cm

Packing Size: 56*49*11cm Pizza box

NW: 6.3KG GW: 7.9KG

Outer box size：58x50x12cm

GW: 7.9KG （1PCS/Box）

Chip Size: Single crystal silicon182

Material: PET+600D

Conversion efficiency: 23%

Output voltage: 20.5V(3 strings of 2 parallel)

Output current: 9.8A （Max）

Junction box: PD45W+QC3.018W+USB5 （XT60 output: PWM 12V）

Cables and plugs: 16AWG 3M MC4+XT60 5525插头

Accessories：5525female to：5521+7909+35135

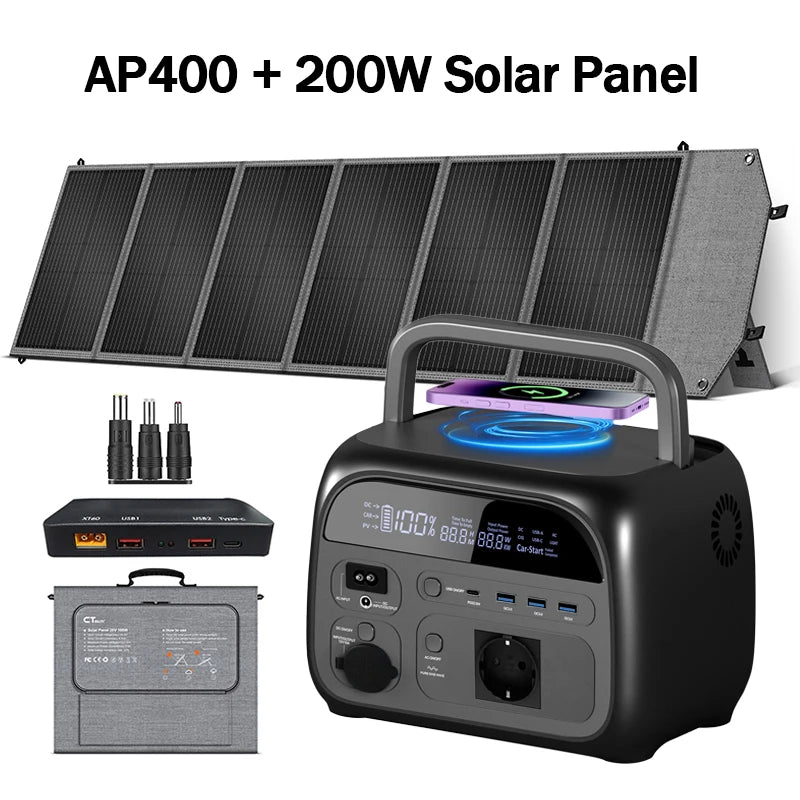

AP400

345.6Wh/108000mAh/ 3.2V Lifepo4 Battery

500W rated power

Wireless charging

LED Lighting

Life cycle>3000 times

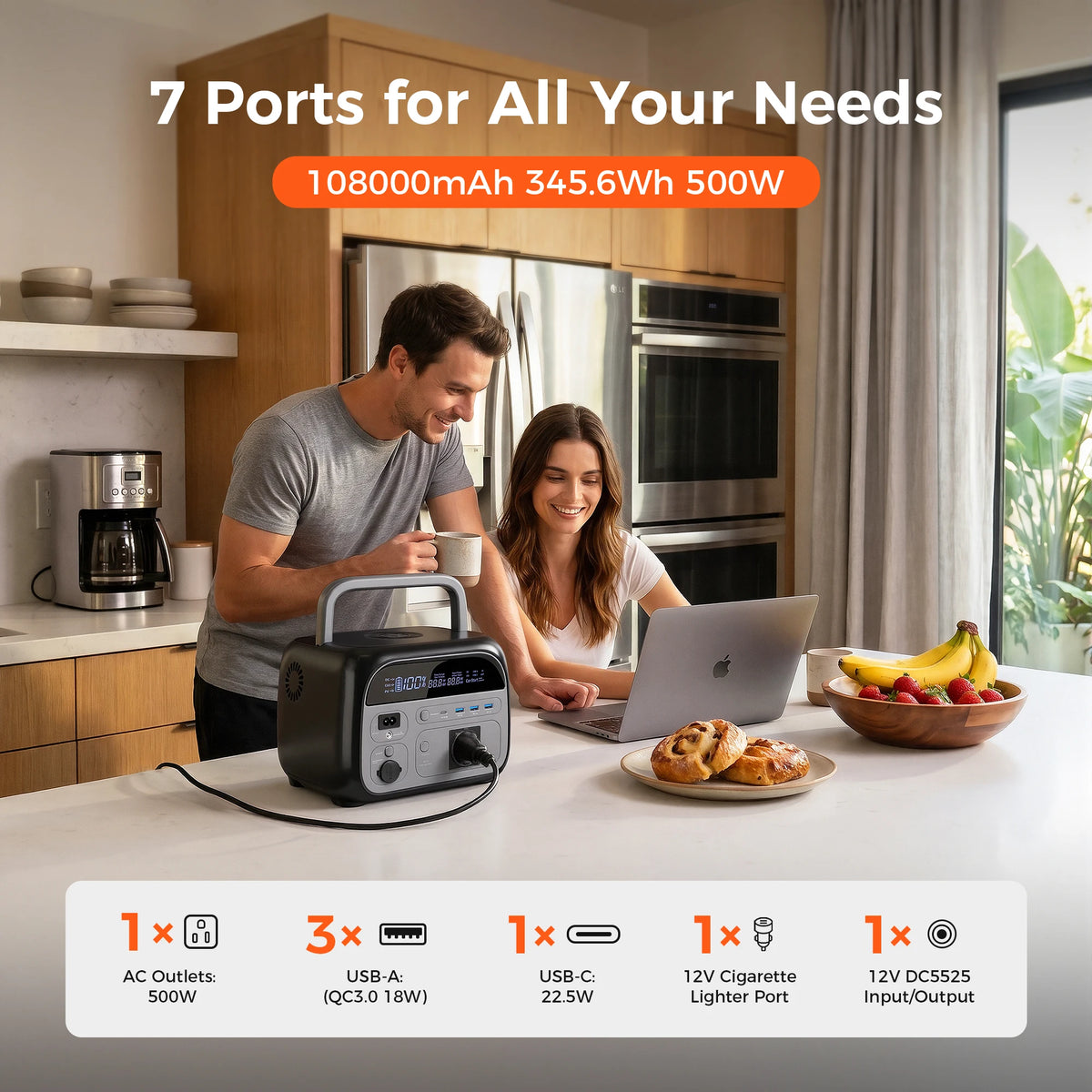

1*Type-C, 3*USB outputs 2*AC outputs

Multicolor customization

●AC Charge

●Solar Charge

●Vehicle Charge

●2 hours quick charge

●Built-in BMS

●Built-in MPPT controller

●CE\ROSH\UN38.3

●3 Year Warranty

• [Portable Generator with 345.6Wh Capacity and 500W AC Output]: Ctolity portable power station can provide enough juice to charge your phones, laptop, camera, drone, etc. With 8 output ports including 2 pure sine wave AC(500W), 3× QC3.0 USB-A (18W), USB-C (PD22.5W), DC, and car socket, which makes it a perfect RV trips, outdoor and camping backup battery

• [1.2h AC+DC fast Recharge for Power Station]: Power up in just 1.2 hours through the AC outlet and DC port simultaneously. You can recharge your power station with an AC adaptor at home, through the car outlet during a road trip, or use a solar panel. Stay charged, no matter where you are

[LIFEPO4 Long-Life Battery & Advanced BMS Protection]: Power up with LiFePO4 batteries designed to last 2,000 charge cycles. Ctolity camping power station has an advanced battery management system of voltage current and temperature control, which can protect the battery bank from damage by overcharging, overloading, and short circuits, to make sure you use it efficiently and safely

• [Wireless Chargers Power Station for Mobile Phone]: Compatible with most phones that support wireless charging(5W, iPhone 7.5W, Samsung 10W). When it's turned on, place the mobile phone on the top surface of the solar powered generator to charge it
