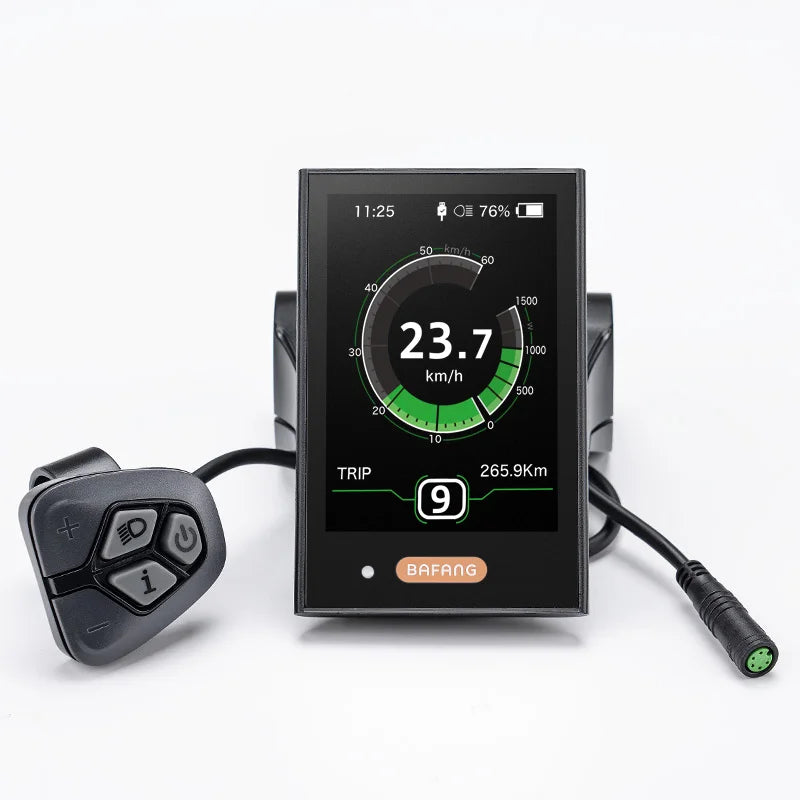

Black Bafang DPC18 e-bike display unit with color screen, speedometer, connected control pad, and wiring.

Bafang DPC18 Electric Bike Display with Speedometer USB Charging Port for Mid Drive Motor BBS01B BBS02B BBSHD Speedometer

DPC18
£99.96
Skip to product information
Black Bafang DPC18 e-bike display unit with color screen, speedometer, connected control pad, and wiring.
  • Black Bafang DPC18 e-bike display unit with color screen, speedometer, connected control pad, and wiring.

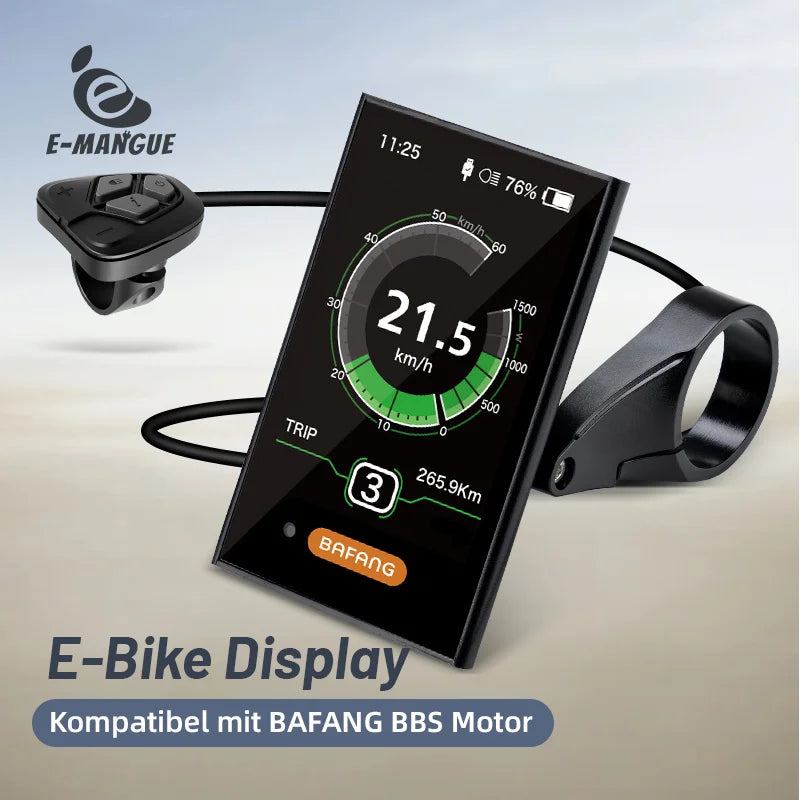

  • Black Bafang DPC18 e-bike display with rectangular screen, handlebar mount, and separate control pad.

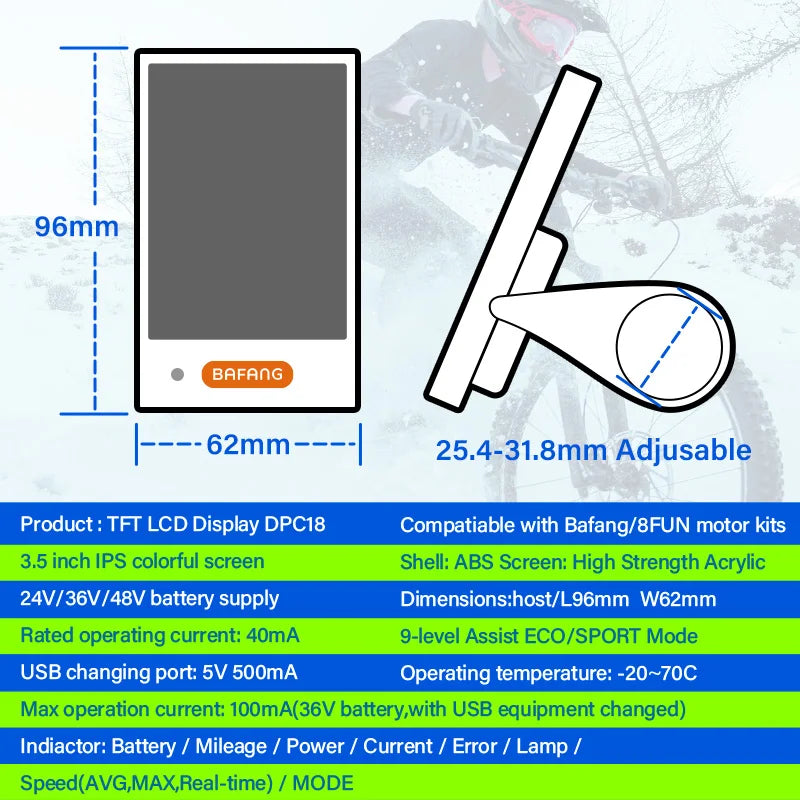

  • Black Bafang DPC18 e-bike display with rectangular TFT screen, handlebar mount, and dimensions 96x62mm.

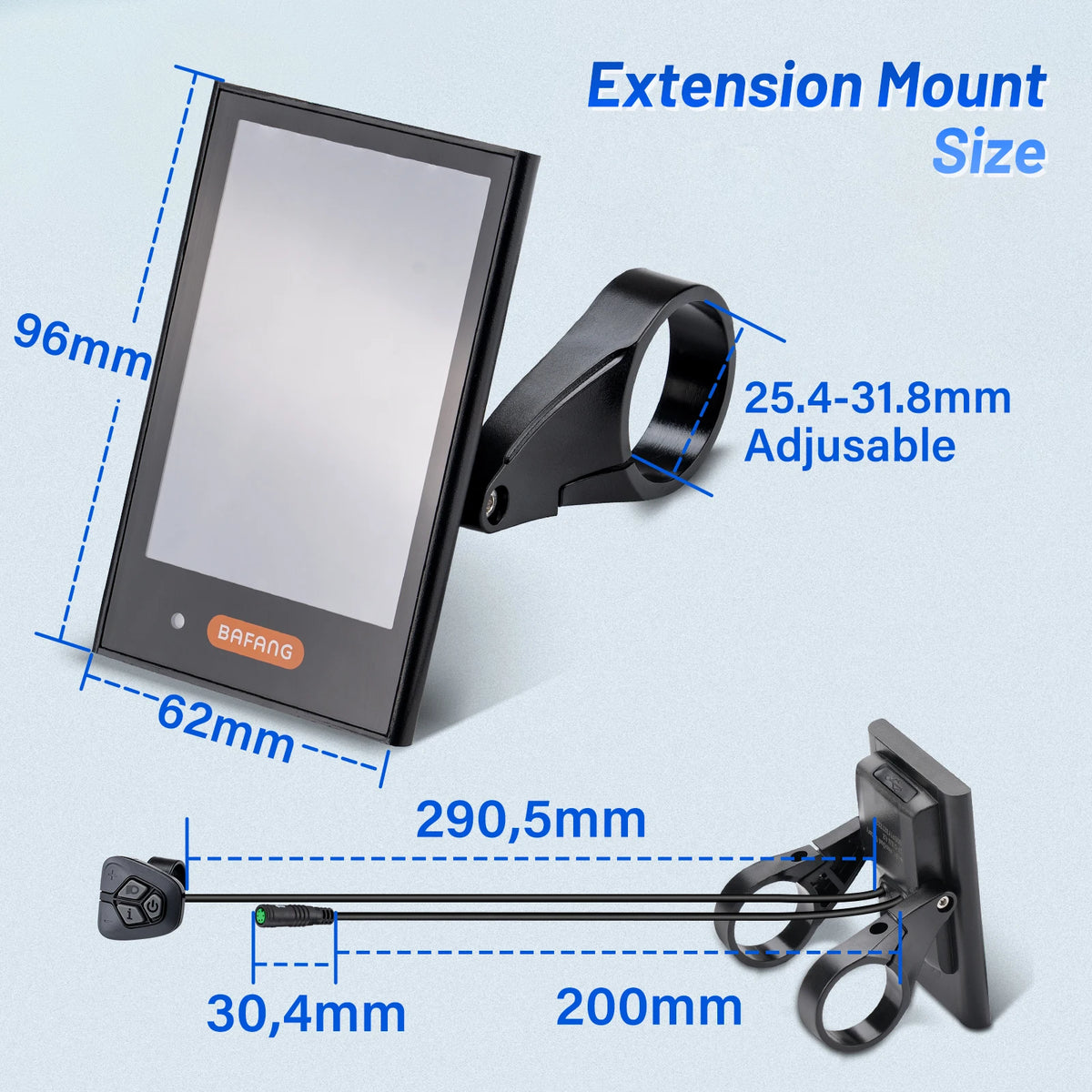

  • Black Bafang DPC18 e-bike display showing size dimensions, handlebar mount, and control pad with cables.
  • Black Bafang DPC18 electric bike display with rectangular screen, handlebar mount, control pad, and connecting cable.
  • Bafang DPC18 black e-bike display with speedometer, plus 1T4 cable and mid-drive motor.

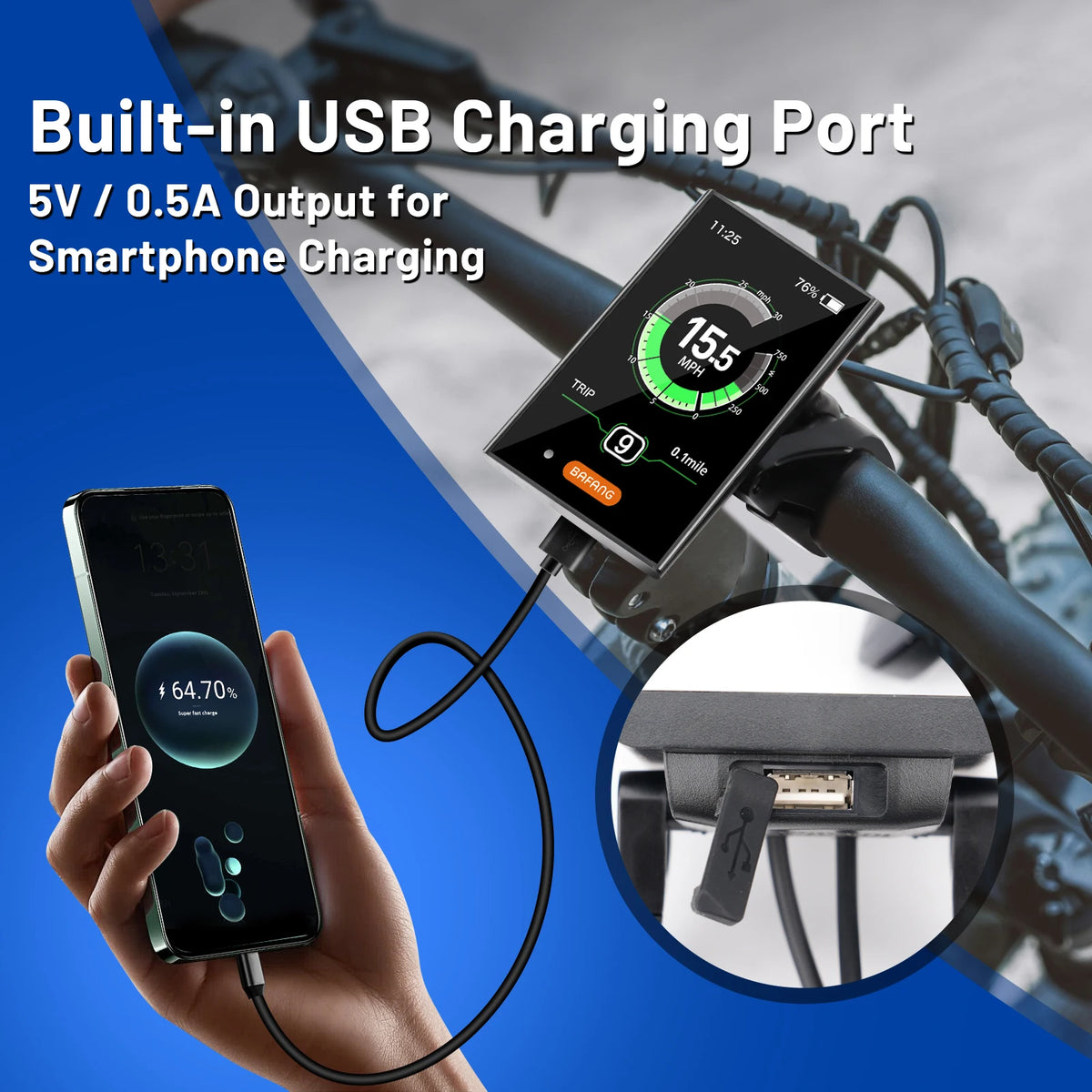

  • Black Bafang DPC18 electric bike display mounted on handlebars, connected via USB cable to a smartphone being charged.
  • Black Bafang DPC18 e-bike display unit with color screen, speedometer, connected control pad, and wiring.
  • Black Bafang DPC18 e-bike display with rectangular screen, handlebar mount, and separate control pad.
  • Black Bafang DPC18 e-bike display with rectangular TFT screen, handlebar mount, and dimensions 96x62mm.
  • Black Bafang DPC18 e-bike display showing size dimensions, handlebar mount, and control pad with cables.
  • Black Bafang DPC18 electric bike display with rectangular screen, handlebar mount, control pad, and connecting cable.
  • Bafang DPC18 black e-bike display with speedometer, plus 1T4 cable and mid-drive motor.
  • Black Bafang DPC18 electric bike display mounted on handlebars, connected via USB cable to a smartphone being charged.
Bafang DPC18 Electric Bike Display with Speedometer USB Charging Port for Mid Drive Motor BBS01B BBS02B BBSHD Speedometer

Bafang DPC18 Electric Bike Display with Speedometer USB Charging Port for Mid Drive Motor BBS01B BBS02B BBSHD Speedometer

£99.96
ColorDPC18

SPECIFICATIONS

Brand Name: BAFANG

Certification: CE,RoHS

Communication Protocol: UART

High-concerned chemical: none

Indicator Panel: LCD

Model Number: DPC18

Origin: Mainland China

Package dimensions: 10.49 x 10.01 x 8.71 cm

Stopwatch and Accessories: Wired Stopwatch

Type: Display

Waterproof: IP65

Working Voltage: 36V/43V/48V

E-Mangue X BAFANG(Original)



DPC18 3.5" TFT Color Display UART Protocol


Specifications：

Model: DPC18
Protocol: UART

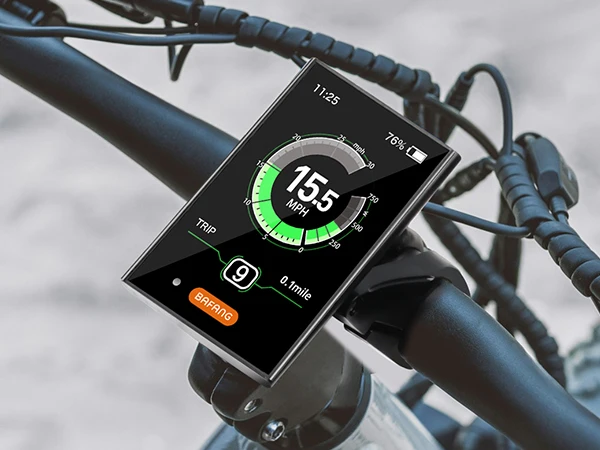

Screen: 3.5" TFT Color Screen
Waterproof: IP65
Voltage: 36V / 43V / 48V
PAS Level: 0-3 /0-5 /0-9 optional

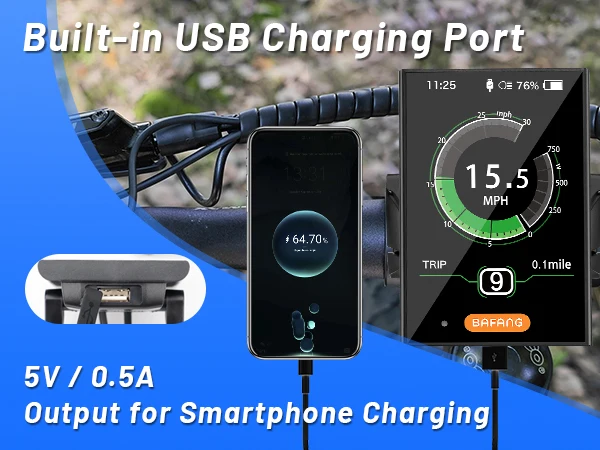

USB Output: 5V, 0.5A for phone charging
Mount Size: Adjustable for 25.4mm ~31.8mm handlebar

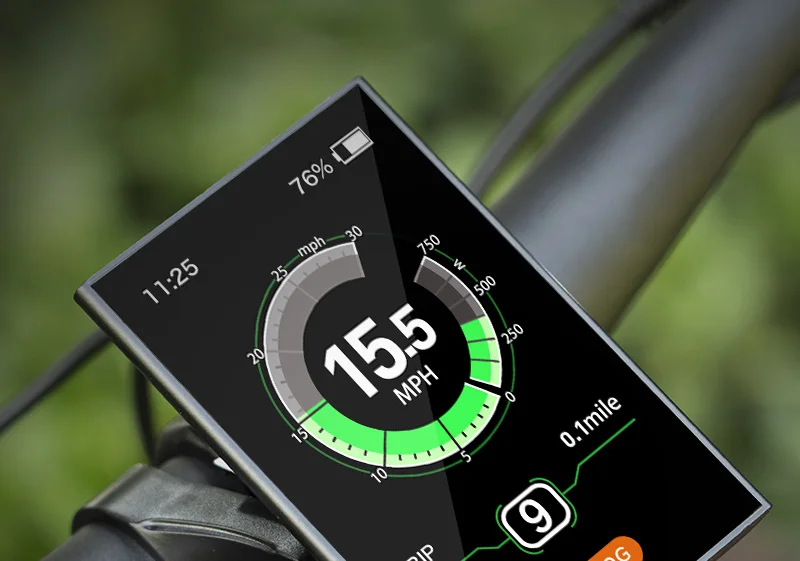

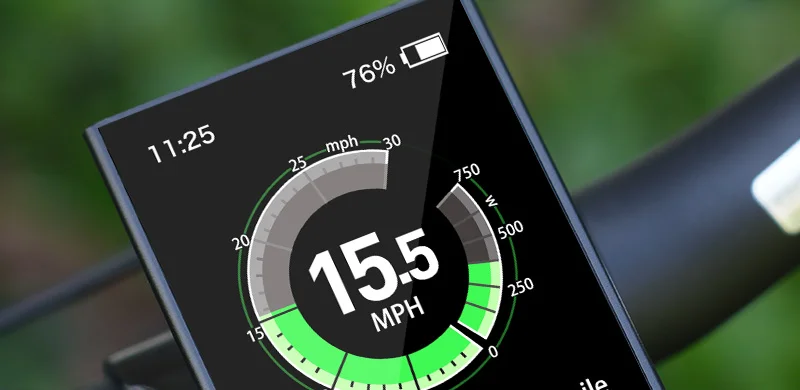

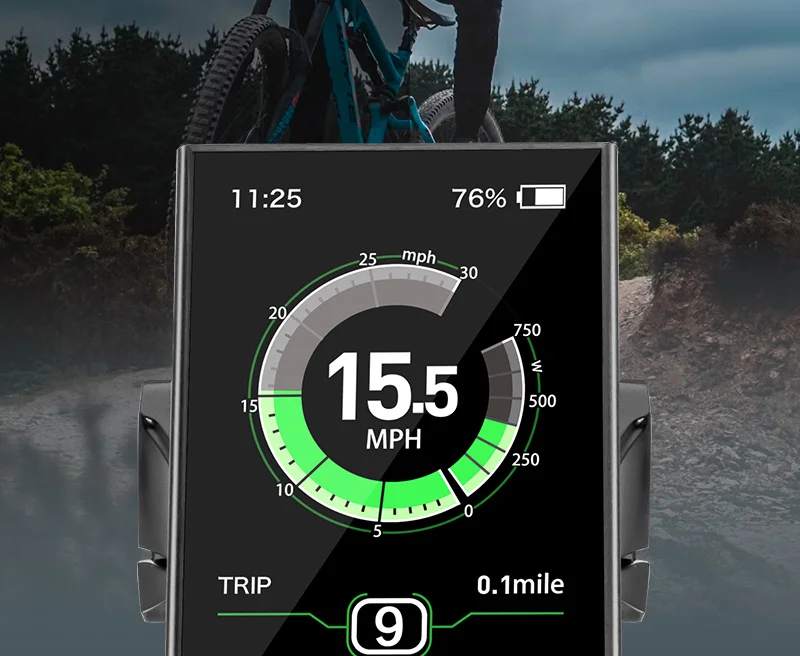

Display Content: Speed, Trip, Total Mileage, Battery, Power, Time
Connector: UART 5Pin Female Round
Display Dimension: 96mm × 62mm
Cable Length: 290.5mm


Package Includes：

1 × DPC18 TFT Display
1 × Handlebar Extension Mount

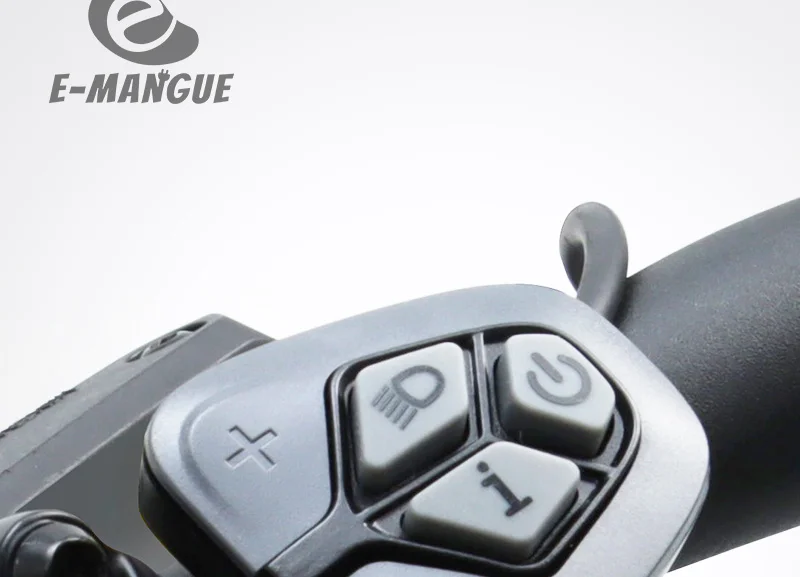

1 × Control Switch
1 × Connecting Cable

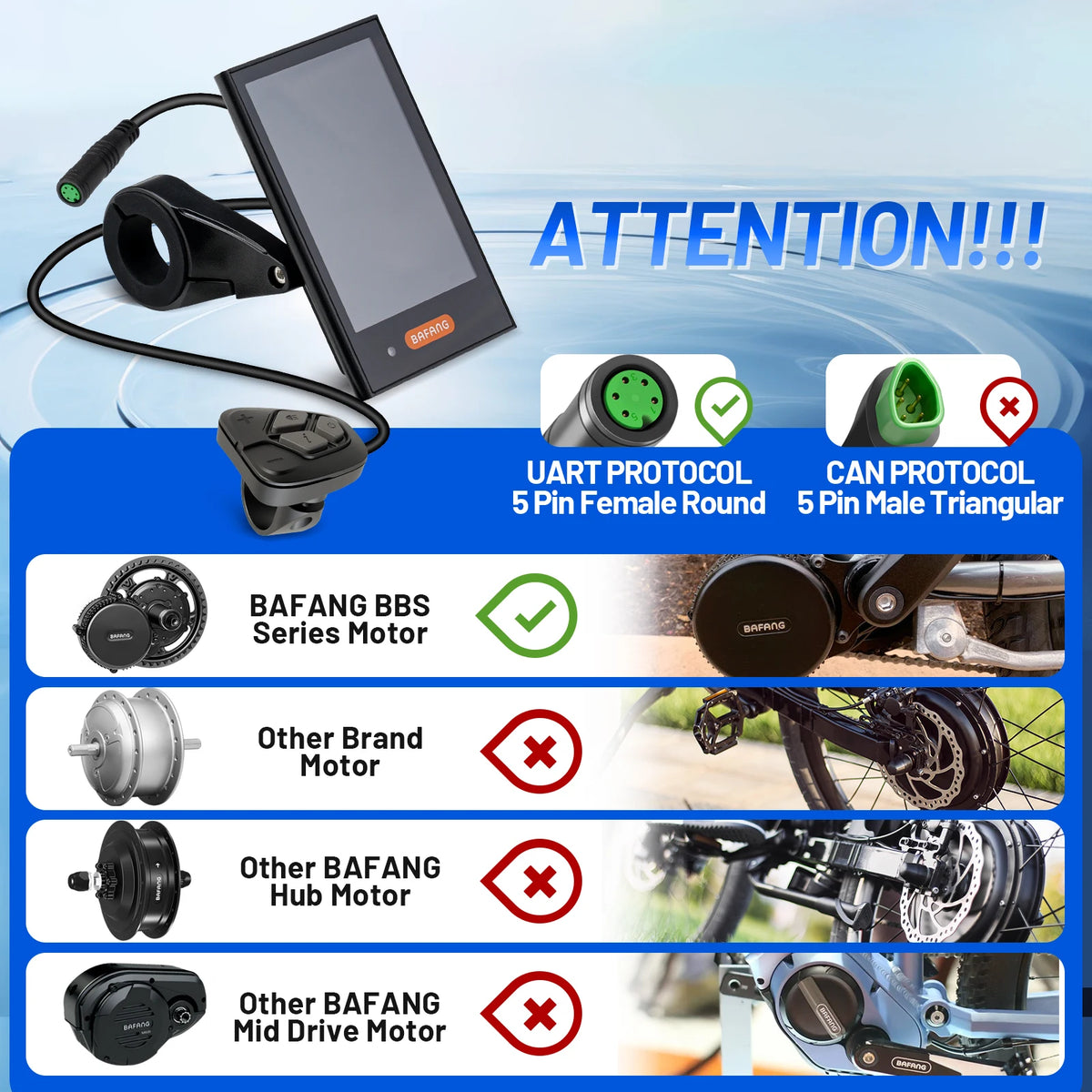

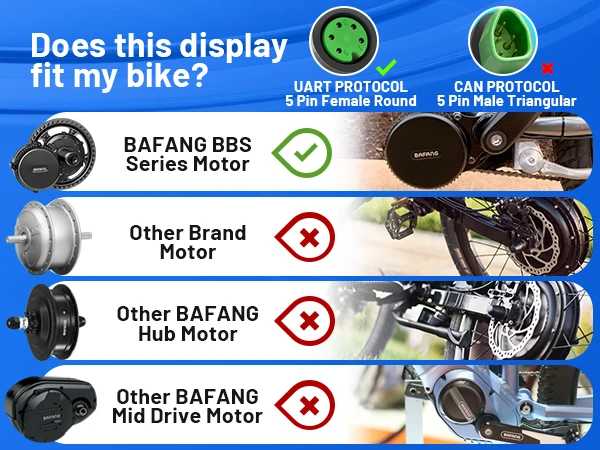

Compatibility Notice：

⚠️ Important Compatibility Warning

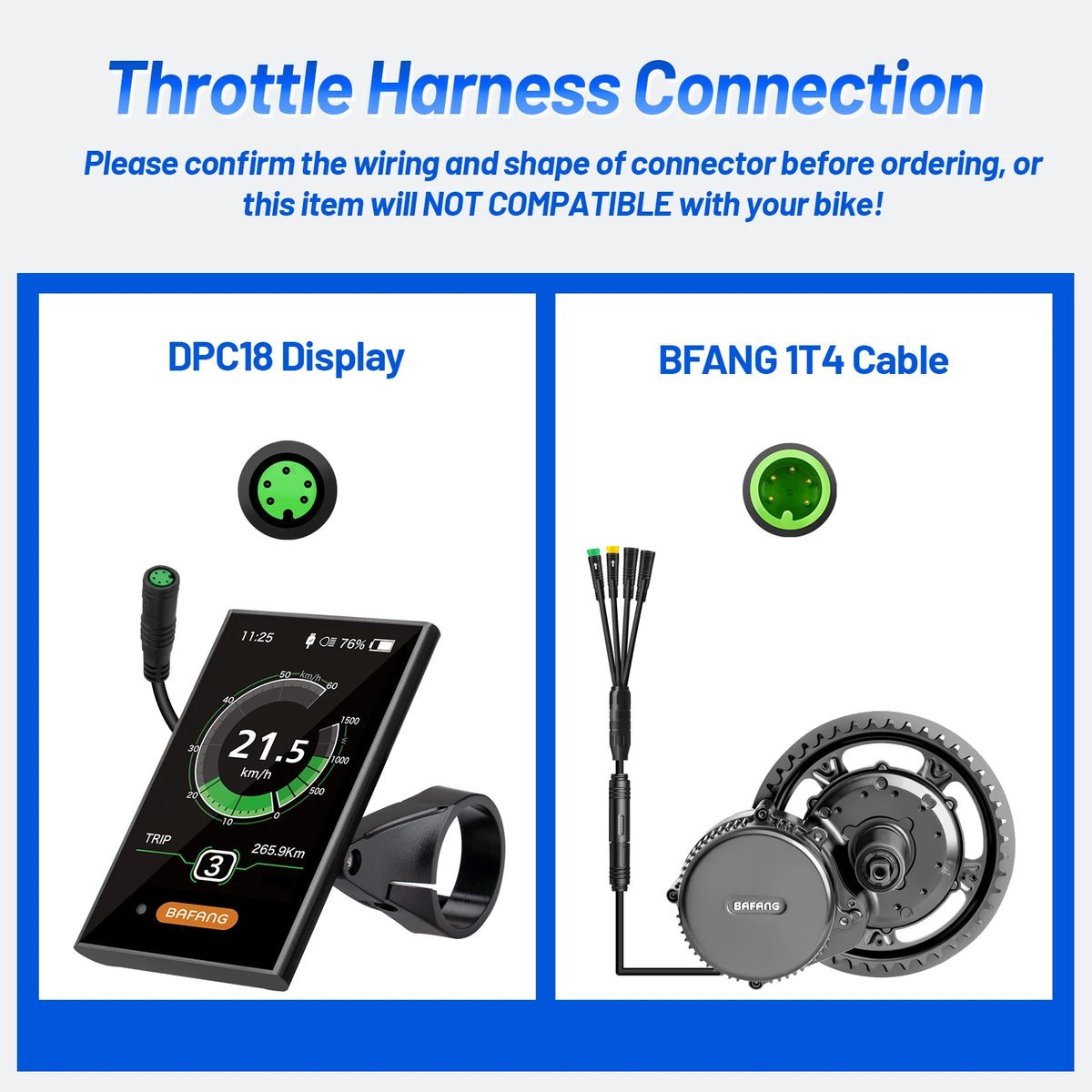

1. DPC18 works ONLY for Bafang UART BBS series mid motor (BBS01B, BBS02B, BBSHD).
2. Connector: UART 5Pin Female Round plug. NOT compatible with CAN protocol triangular male plug.
3. NOT compatible: Bafang hub motor, other brand mid/hub motor, Bafang CAN version motors.
4. Please double check your motor protocol and connector shape before purchase. Mismatch cannot work.

Tips：

👉 Confirm your motor protocol and connector before ordering. UART and CAN are not interchangeable.

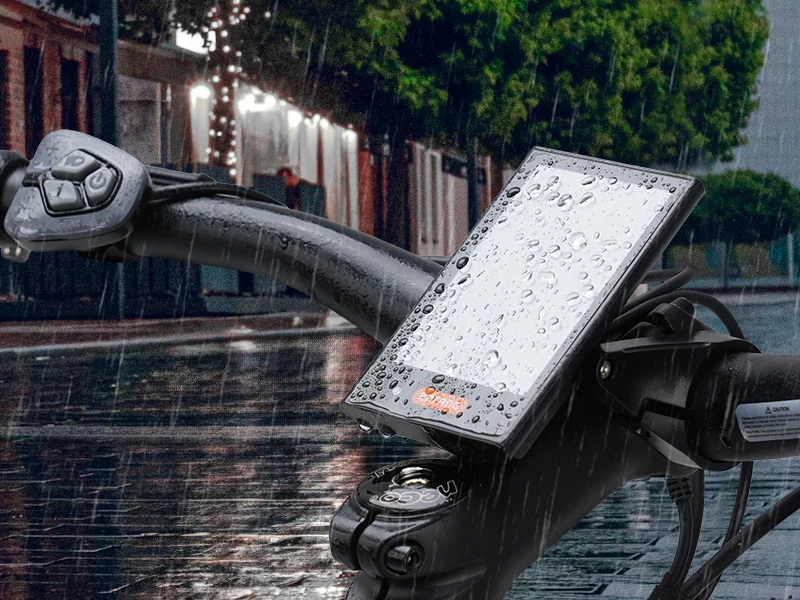

👉 IP65 only for water splash protection, DO NOT immerse in water.
👉 The USB port is 5V 0.5A low power output, only for emergency phone charging.
